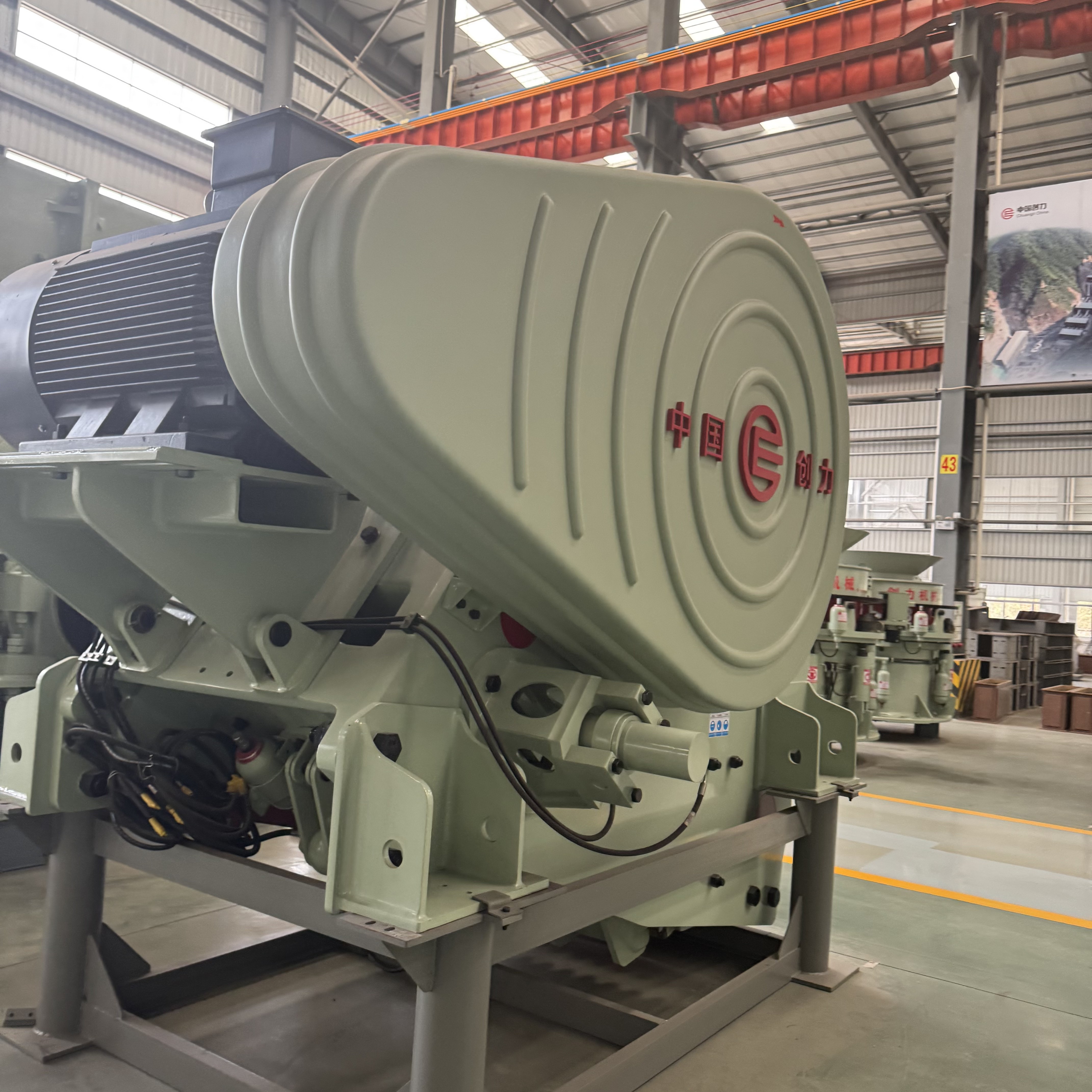

CJ116 Jaw Crusher Introduction
The CJ116 Jaw Crusher delivers high-performance crushing with outstanding energy-saving efficiency. Engineered with a 700 × 1150 mm feed opening, advanced swing jaw kinematics, and a modular non-welded frame, it offers robust durability, low maintenance costs, and reliable throughput for medium-scale mining, quarry, and aggregate operations.
| Quantity: | |
|---|---|
Product Overview: CJ116 Modular Jaw Crusher
The CJ116 Jaw Crusher is a compact yet powerful primary crushing solution designed for efficiency and reliability. Featuring a hydraulically adjustable discharge port (70–200 mm), optimized crushing chamber geometry, and intelligent automation capabilities, it ensures consistent product sizing, lower operating costs, and seamless integration into modern crushing circuits.
Key Features of the CJ116 Jaw Crusher
1. High-Performance Crushing with Energy-Saving Design
Equipped with a 132 kW energy-efficient motor and optimized kinematics, the CJ116 delivers 155–580 t/h throughput with reduced power consumption per ton, lowering operational costs and environmental impact.
2. Modular, Welding-Free Structure for Durability & Easy Maintenance
The innovative modular frame eliminates welding stress concentrations, enhances structural integrity, and simplifies component replacement, significantly reducing maintenance time and lifecycle costs.
3. Hydraulically Adjustable Discharge for Precise Product Control
The discharge opening is quickly and precisely adjustable via hydraulic pressure, allowing operators to change product size (70–200 mm) without stopping the crusher, ensuring flexibility and continuous operation.
4. Enhanced Toggle Plate Design for Increased Throughput
A large-inclination toggle plate improves crushing force distribution and bottom-stroke impact, boosting output and improving overall crushing efficiency in medium to hard materials.
5. Intelligent Automation & Remote Monitoring
Integrated with real-time monitoring and control systems, the CJ116 can detect overloads, prevent blockages, and enable remote operation—increasing safety, uptime, and operator convenience.
Applications of the CJ116 Jaw Crusher
1. Medium-Scale Mining & Mineral Processing
Ideal for primary crushing of gold, copper, and iron ores in mid-tier mining operations, offering reliable throughput and automation for improved recovery rates.
2. Quarry & Aggregate Production for Construction
Processes limestone, granite, and basalt into aggregates for concrete, asphalt, and road base, with consistent grading and low wear cost.
3. Recycling Plants for C&D Materials
Crushes demolition concrete, bricks, and reclaimed asphalt into reusable aggregates, featuring dust control and noise reduction for urban compliance.
4. Integrated Plant Automation & Smart Crushing Circuits
Suited for plants using centralized control systems, remote monitoring, and IoT-enabled equipment for optimized production scheduling and maintenance planning.
CJ116 Technical Specifications
| Model | CJ116 |
| Feeding Gate (mm) | 700 * 1150 |
| Power (kw) | 132 |
| Discharge Port | Capacity (t/h) |
| 70 mm | 155 - 185 |
| 80 mm | 170 - 220 |
| 90 mm | 190 - 240 |
| 100 mm | 210 - 270 |
| 125 mm | 250 - 320 |
| 150 mm | 300 - 380 |
| 175 mm | 350 - 450 |
| 200 mm | 420 - 580 |
| 225 mm | |
| 250 mm | |
| 275 mm | |
| 300 mm |
Performance Comparison: CJ116 vs PE1060 Jaw Crusher
| Feature | CJ116 Jaw Crusher | PE1060 Jaw Crusher |
|---|---|---|
| Feed Opening | 700 × 1150 mm | 750 × 1060 mm |
| Power | 132 kW | 110 kW |
| Discharge Adjustment | Hydraulic, range 70–200 mm | Mechanical, range 160–250 mm |
| Capacity Range | 155–580 t/h | 160–280 t/h |
| Frame Design | Modular, welding-free | Welded, heavy-duty |
| Automation | Intelligent monitoring & remote control | Standard with optional upgrades |
| Ideal For | Medium-scale mining, automated plants | Urban recycling, green projects |
Why Choose the CJ116 Jaw Crusher?
Energy-Efficient Performance: Lower kWh per ton with optimized drive and chamber design.
Modular & Maintainable: No-weld structure extends life and simplifies part replacement.
Smart & Connected: Ready for automation and remote operation, reducing labor and downtime.
Flexible Output Sizing: Wide discharge range supports multiple product specifications from one machine.
Proven in Tough Conditions: Built for continuous duty in mining, quarry, and recycling environments.
