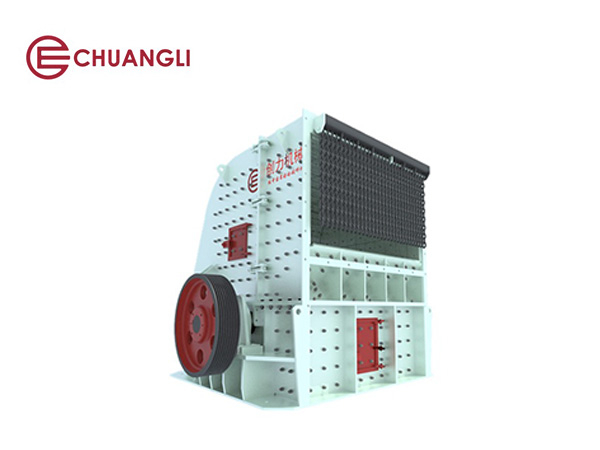

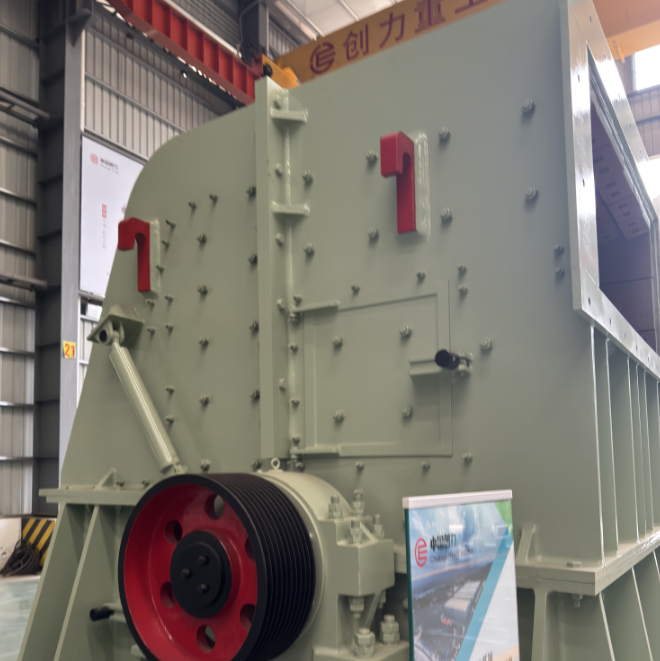

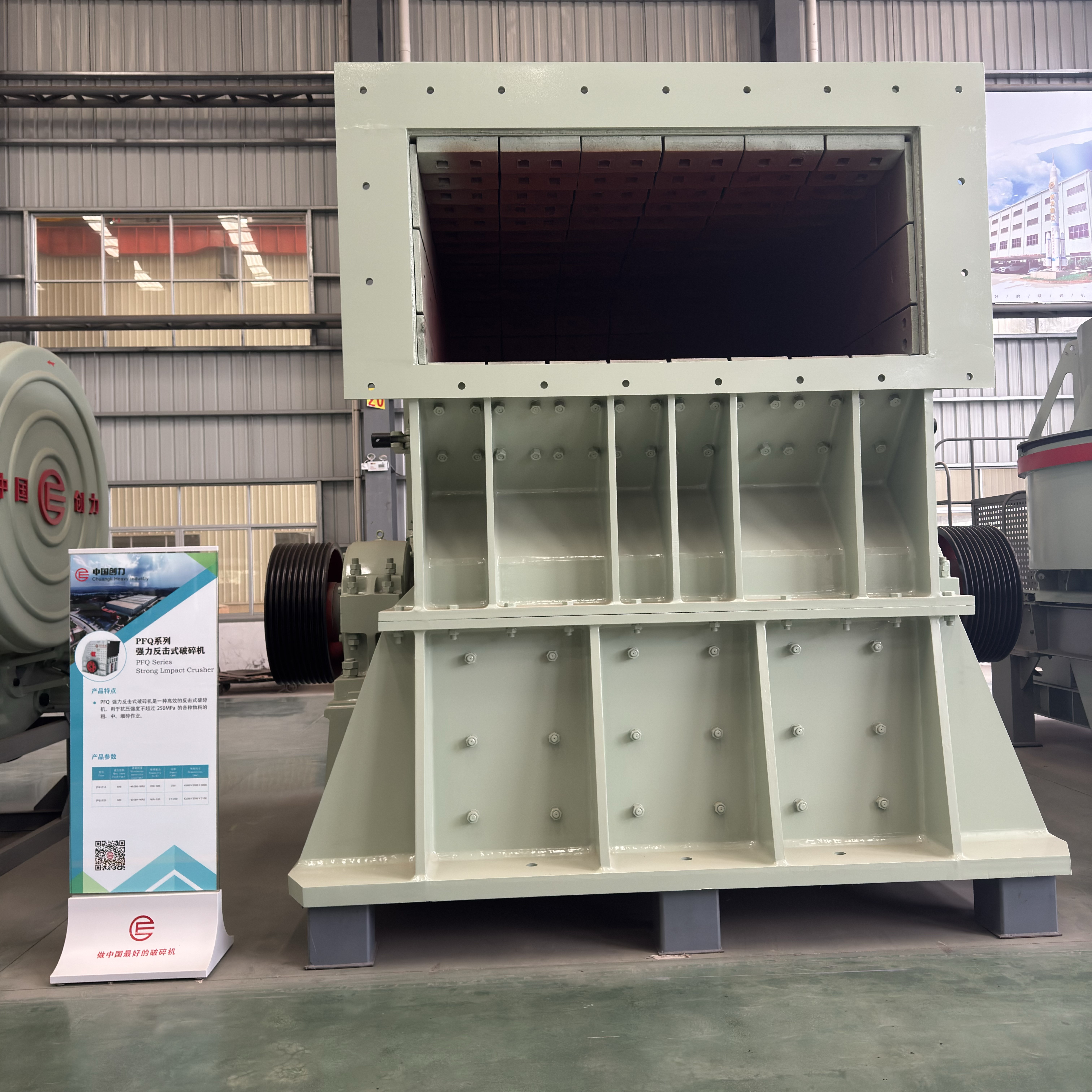

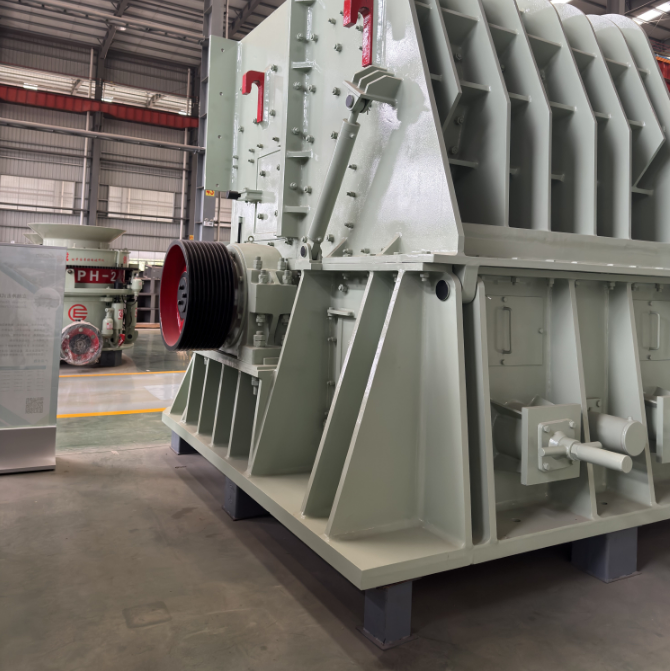

PFQ1315 Strong Impact Crusher Introduction
Our Stone Impact Crusher PFQ1315 is a high-performance crushing solution designed for efficient processing of a wide range of materials. Operating on impact crushing principles, it accelerates feed material within a precisely engineered chamber, achieving high reduction ratios and uniform product size distribution with lower energy consumption and operational flexibility.
| Quantity: | |
|---|---|
Product Description: PFQ Series Strong Impact Crusher
The PFQ Series Strong Impact Crusher is engineered for high-efficiency coarse, medium, and fine crushing of materials with compressive strength up to 250 MPa. Featuring a high-strength rotor driven by a powerful motor and wear-resistant impact plates, it delivers consistent performance in demanding environments such as mining, quarrying, cement production, and recycling applications.
Key Features of the PFQ1315 Impact Crusher
1. High-Efficiency Impact Crushing with Staggered Hammer Design
The staggered hammer arrangement optimizes impact distribution and material trajectory, improving crushing efficiency and throughput. Combined with a high-speed rotor, it achieves a high crushing ratio in a single pass, reducing the need for secondary crushing stages.
2. Adjustable Outlet Grate for Precise Product Size Control
The crusher features an adjustable outlet grate, allowing operators to fine-tune the final product size (e.g., -40 mm with 80–90% yield) to meet specific project and material specifications.
3. Horizontal Feed System for Smooth & Stable Operation
The horizontal feed design ensures consistent material entry into the crushing chamber, reducing wear and vibration while maintaining steady throughput of 200–300 t/h even under varying load conditions.
4. Durable Construction with Wear-Resistant Components
Built with high-strength alloy steel and reinforced impact plates, the PFQ1315 withstands abrasive and hard materials, extending service life and reducing replacement frequency of wear parts.
5. Hydraulic-Assisted Maintenance for Reduced Downtime
Integrated hydraulic systems simplify access to the crushing chamber, facilitating quicker inspection, hammer rotation, and component replacement, significantly lowering maintenance time and operational interruptions.
Performance Comparison: PFQ vs PF Series Impact Crushers
| Feature | PFQ1315 Strong Impact Crusher | PF-1315 Impact Crusher |
|---|---|---|
| Crushing Principle | Staggered hammer + impact plates | Multi-impact + rock-on-rock attrition |
| Max. Feed Size | 400 mm | 400 mm |
| Capacity Range | 200–300 t/h | 140–250 t/h |
| Power | 250 kW | 180–240 kW |
| Key Strength | High single-pass reduction, rugged design | Superior particle shaping, multi-stage impact |
| Ideal For | Coarse to medium crushing, high-strength materials | Medium-fine shaping, high-quality aggregate production |
Applications of the PFQ1315 Impact Crusher
1. Aggregate Production for Construction Materials
Widely used to produce high-quality aggregates for concrete, asphalt, and road base materials, delivering consistent particle shape and size essential for structural integrity.
2. Cement Raw Material Preparation
Efficiently crushes limestone, clay, gypsum, and other cement raw materials into required sizes, enhancing productivity and energy efficiency in cement manufacturing.
3. Recycling of Construction & Demolition Waste
Processes concrete, asphalt, and masonry waste into reusable aggregates, supporting sustainable construction practices and reducing landfill use.
4. Mining & Mineral Processing
Suitable for crushing non-abrasive to moderately abrasive ores and industrial minerals, preparing feed for further beneficiation or processing stages.
| Model | Maximum Feed | Discharge Particcle Size | Capacity | Power | Dimension |
| (mm) | (mm) | (t/h) | (kw) | (mm) | |
| PFQ1315 | 400 | - 40 (80 - 90%) | 200 - 300 | 250 | 4500 * 3500 * 3000 |
Why Choose the PFQ1315?
High Throughput with Lower Energy Use: Achieves 200–300 t/h with 250 kW drive power.
Flexible Product Sizing: Adjustable outlet allows -40 mm output with high consistency.
Robust & Low-Maintenance Design: Built for continuous operation with easy-access hydraulic maintenance.
Versatile Material Adaptability: Handles limestone, sandstone, recycled concrete, and medium-hard ores.
