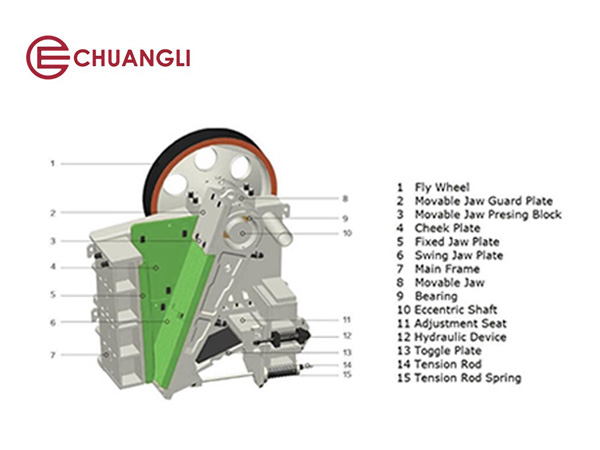

Structure Of CJ150 Jaw Crusher

Product Overview: CJ150 High-Capacity Modular Jaw Crusher

The CJ150 Jaw Crusher is designed for heavy-duty primary crushing in large-scale operations. With a generous 1100×1400 mm feed opening, optimized swing jaw kinematics, and hydraulic toggle system, it maximizes throughput, reduces energy consumption, and minimizes maintenance downtime, supporting continuous production in the most challenging environments.

Key Features of the CJ150 Jaw Crusher

1. High-Performance Kinematics for Maximum Throughput
The enhanced swing jaw design with high stroke in feed and discharge zones ensures optimal material flow and crushing action, significantly increasing capacity and reducing energy use per ton crushed.

2. Modular Welding-Free Structure for Durability & Easy Maintenance
Built with a non-welded modular frame that eliminates stress concentrations, enhances structural integrity, and simplifies component replacement, lowering long-term maintenance costs and extending service life.

3. Hydraulic Toggle & Discharge Adjustment System
Equipped with automatic hydraulic adjustment of the toggle plate tension and discharge opening (125–275 mm), allowing rapid, precise setting changes without downtime and ensuring consistent product sizing.

4. Large Toggle Plate Inclination for Enhanced Crushing Force
The steep toggle plate angle increases compressive force in the lower crushing chamber, improving reduction efficiency and boosting output, especially for medium-hard to very hard materials.

5. Energy-Efficient Operation with Low Operating Costs
Designed to deliver high throughput (up to 1070 t/h) with a 220 kW motor, optimizing power use and reducing overall energy consumption, contributing to lower operational expenses and a smaller carbon footprint.

Applications of the CJ150 Jaw Crusher

1. Large-Scale Mining & Ore Primary Reduction
Handles iron, copper, gold, and other metallic ores in high-tonnage mining operations, providing reliable, high-capacity size reduction before secondary crushing or grinding.

2. Major Quarry & Hard Rock Aggregate Production
Processes granite, basalt, limestone, and other hard stone into primary crushed aggregates for highways, railways, ports, and commercial construction.

3. Heavy-Duty Recycling of Demolition & Construction Waste
Capable of crushing reinforced concrete, asphalt, bricks, and C&D debris into reusable aggregates, supporting circular economy practices and landfill diversion.

4. Industrial Mineral & Slag Processing
Crushes slag, synthetic aggregates, and industrial minerals for use in cement, road base, and construction materials, with wear-resistant jaw plates for abrasive conditions.

5. Large Infrastructure & Civil Engineering Projects
Supplies high volumes of specification crushed stone for dam construction, tunnel lining, bridge foundations, and other major civil works.

CJ150 vs Gyratory Crusher (High-Capacity Primary)

Why Choose the CJ150 Jaw Crusher?

• High Throughput with Energy Efficiency: Delivers up to 1070 t/h with optimized kinematics and a 220 kW motor for lower energy costs.

• Durable Modular Construction: Welding-free frame enhances longevity, simplifies maintenance, and supports flexible installation.

• Quick & Precise Hydraulic Adjustment: Automatic setting changes minimize downtime and ensure consistent product sizing.

• Proven in Hard Rock & Abrasive Applications: Robust design and wear-resistant components withstand continuous operation in demanding conditions.

• Versatile for Fixed & Mobile Setups: Suitable for stationary plants, semi-mobile units, and large-scale portable crushing systems.
