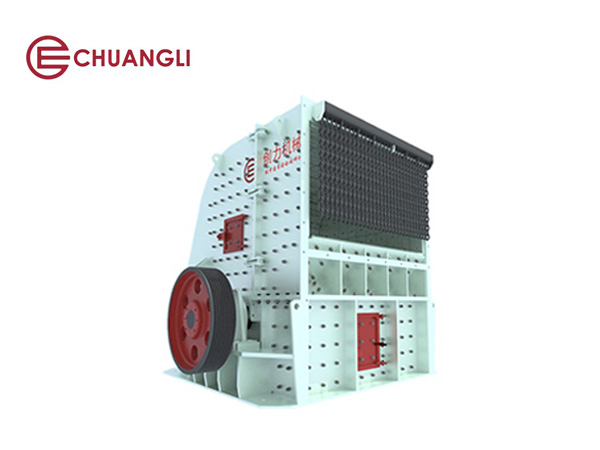

PFQ1520 Strong Impact Crusher Introduction
Our Stone Impact Crusher PFQ1520 integrates advanced technology to deliver superior performance and reliability in heavy-duty crushing applications. Featuring a balanced rotor design for reduced vibration and enhanced operational stability, along with an intelligent hydraulic system for easy adjustment and overload protection, this crusher is engineered to maximize productivity while ensuring safety and durability in challenging environments.
| Quantity: | |
|---|---|
Product Description: PFQ1520 High-Performance Impact Crusher
The PFQ1520 Strong Impact Crusher is designed for coarse, medium, and fine crushing of materials with compressive strength up to 250 MPa. Its optimized hydraulic adjustment system, efficient feeding mechanism, and reinforced wear-resistant components make it a versatile and dependable solution for aggregate production, recycling, mining, and industrial material processing.
Key Features of the PFQ1520 Impact Crusher
1. Balanced Rotor Design for Stable & Low-Vibration Operation
The precisely balanced rotor reduces operational vibration and noise, extending equipment life, improving crushing consistency, and making it suitable for use in noise-sensitive or urban environments.
2. Hydraulic Adjustment & Intelligent Overload Protection
The integrated hydraulic system allows quick and precise adjustment of the impact plates and outlet settings. It also provides automatic overload protection, safeguarding the crusher and operator during unexpected load surges.
3. High-Efficiency Feeding System for Continuous Throughput
Engineered to ensure smooth and uniform material flow into the crushing chamber, the feeding system optimizes capacity utilization and supports consistent crushing performance across varying feed sizes.
4. Advanced Wear Protection with Durable Components
Equipped with high-chromium wear plates, reinforced liners, and staggered hammers, the PFQ1520 resists abrasion and impact wear, reducing maintenance frequency and extending service intervals in abrasive material applications.
5. Heavy-Duty Construction with Dual-Motor Drive
Powered by two 250 kW motors, the crusher delivers robust driving force to handle large feed sizes (up to 500 mm) and achieve high throughput capacities of 400–500 t/h, ideal for large-scale production requirements.
Applications of the PFQ1520 Impact Crusher
1. High-Capacity Aggregate Production
Produces high-quality crushed stone and sand for use in concrete, asphalt, and road construction, with excellent particle shape and consistent gradation.
2. Artificial Sand Manufacturing
Used in sand-making plants to produce well-graded artificial sand for construction and infrastructure, meeting strict specifications for modern building projects.
3. Recycling of Industrial & C&D Materials
Efficiently processes construction and demolition waste, glass, ceramics, and municipal solid waste into reusable aggregates, supporting circular economy initiatives.
4. Mining & Mineral Reduction
Capable of crushing moderately abrasive ores and industrial minerals for further processing in mining, cement, and ceramic production operations.
Model | Maximum Feed | Discharge Particcle Size | Capacity | Power | Dimension |
(mm) | (mm) | (t/h) | (kw) | (mm) | |
PFQ1520 | 500 | 40 (80 - 90%) | 400 - 500 | 2 * 250 | 6230 * 3700 * 3100 |
Performance Comparison: PFQ1520 vs PFQ1315 Impact Crushers
| Feature | PFQ1520 Strong Impact Crusher | PFQ1315 Strong Impact Crusher |
Max. Feed Size | 500 mm | 400 mm |
Capacity Range | 400–500 t/h | 200–300 t/h |
Power Configuration | 2 × 250 kW | 1 × 250 kW |
Discharge Size | 40 mm (80–90% yield) | -40 mm (80–90% yield) |
Key Application | High-capacity primary/secondary crushing | Medium-capacity secondary/tertiary crushing |
Ideal For | Large quarries, mining, major infrastructure | Aggregate plants, recycling, cement raw material |
Why Choose the PFQ1520?
High Throughput with Dual-Motor Power: Delivers 400–500 t/h with reliable dual-drive performance.
Low Vibration & Noise: Balanced rotor design enhances operational comfort and environmental compliance.
Smart Hydraulic Control: Enables easy adjustment and overload protection for safe, efficient operation.
Heavy-Duty Wear Resistance: Extended component life reduces operating costs and downtime.
