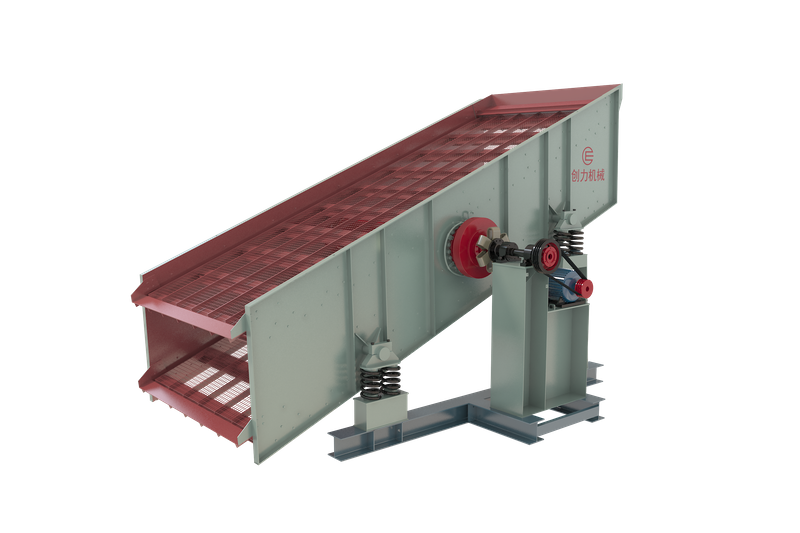

2SZZ Series High-Efficiency Vibrating Screen Introduction
The 2SZZ Series Vibrating Screen is a high-performance screening equipment engineered by CHUANGLII Group for precise classification of medium and fine particle materials. Designed with advanced vibration technology and robust heavy-duty construction, it delivers reliable and efficient dry and wet screening across mining, aggregates, building materials, chemical processing, and recycling applications.
| Quantity: | |
|---|---|
Product Overview: 2SZZ Series High-Capacity Vibrating Screen
The 2SZZ Series is a high-throughput, durable screening solution designed for accurate particle separation and consistent product sizing. Its powerful vibration mechanism, customizable deck configurations, and low-maintenance design make it ideal for industries requiring reliable classification, high processing capacity, and operational flexibility.
Key Features of the 2SZZ Series Vibrating Screen
1. High-Efficiency Screening with Superior Particle Separation

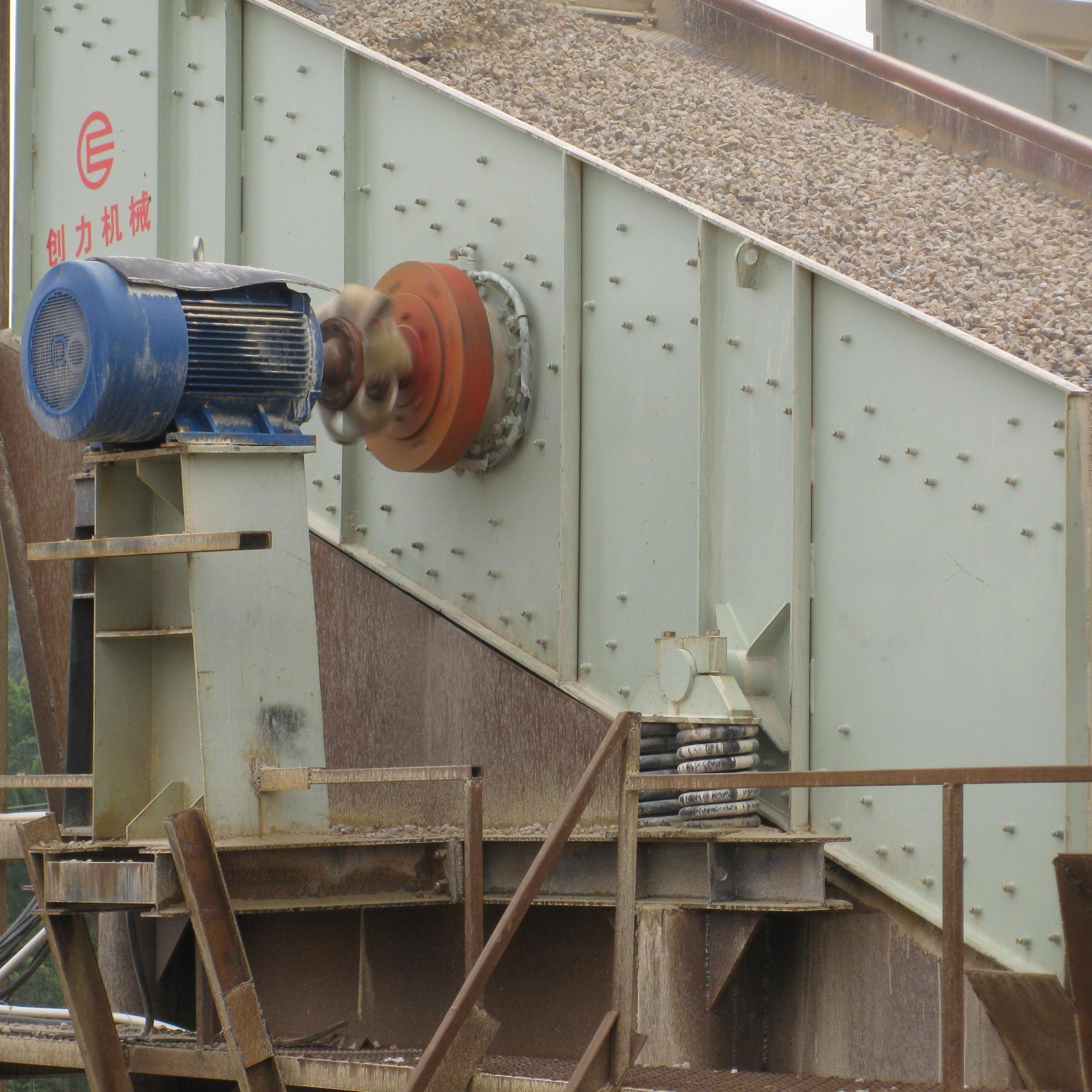

Utilizing a powerful dual-shaft eccentric vibrator or advanced exciter system, the 2SZZ generates strong linear vibration to effectively stratify the material bed. This ensures finer particles have optimal contact with the screen surface, improving screening accuracy, product purity, and throughput efficiency.
2. Heavy-Duty Construction for Long-Term Durability
Constructed from reinforced high-strength steel with robust side plates, cross members, and a sealed vibrator housing, the screen withstands continuous high-impact operation. Large-diameter spherical roller bearings are employed to handle extreme loads and vibration, ensuring structural integrity and extended service life.

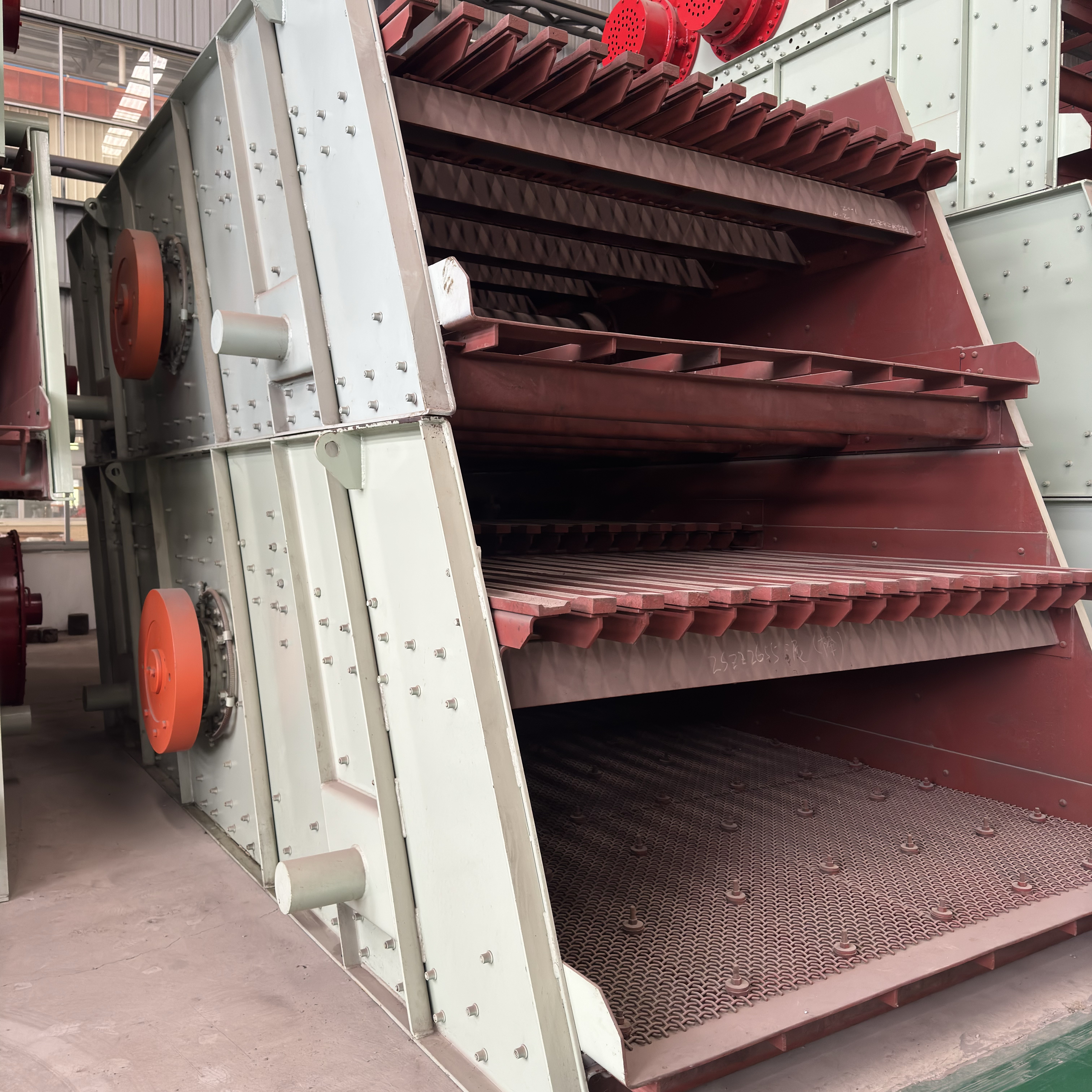

3. Multi-Deck Design with Customizable Screening Options
Available in single, double, and triple-deck configurations (e.g., 2SZZ2655, 3SZZ2670), the screen allows simultaneous production of multiple product grades. Screen media type (wire mesh, polyurethane, rubber), aperture size, and deck inclination can be customized to match specific material characteristics and output requirements.
4. Stable Operation with Low Maintenance Requirements
The balanced vibration system minimizes dynamic loads transferred to the support structure, reducing noise and vibration while protecting surrounding equipment. Modular design and standardized components simplify routine maintenance, screen panel replacement, and bearing inspections.
5. High Capacity & Adaptability for Diverse Applications
With screening areas ranging from 2200×5500 mm to 2600×7000 mm and capacities up to 1000 t/h (e.g., bar mud sifter 2SZZ2655), the series handles a wide variety of materials including aggregates, ores, industrial minerals, and recycled products in both dry and wet conditions.
Applications of the 2SZZ Series Vibrating Screen

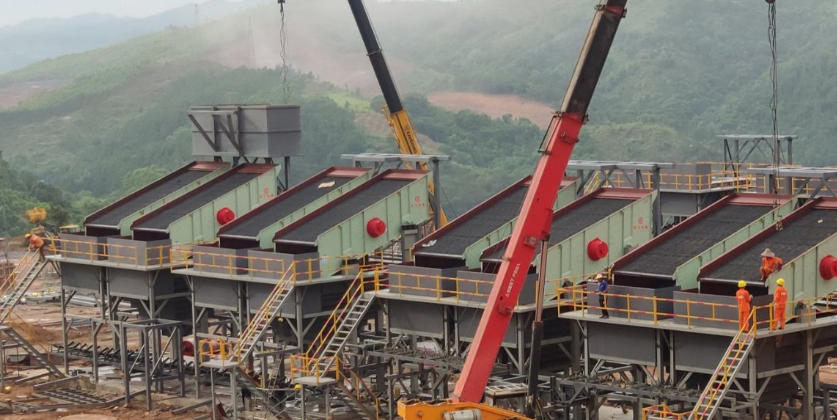

1. Mining & Mineral Processing
Screens ores, coal, and industrial minerals for size classification before beneficiation, grinding, or shipment.

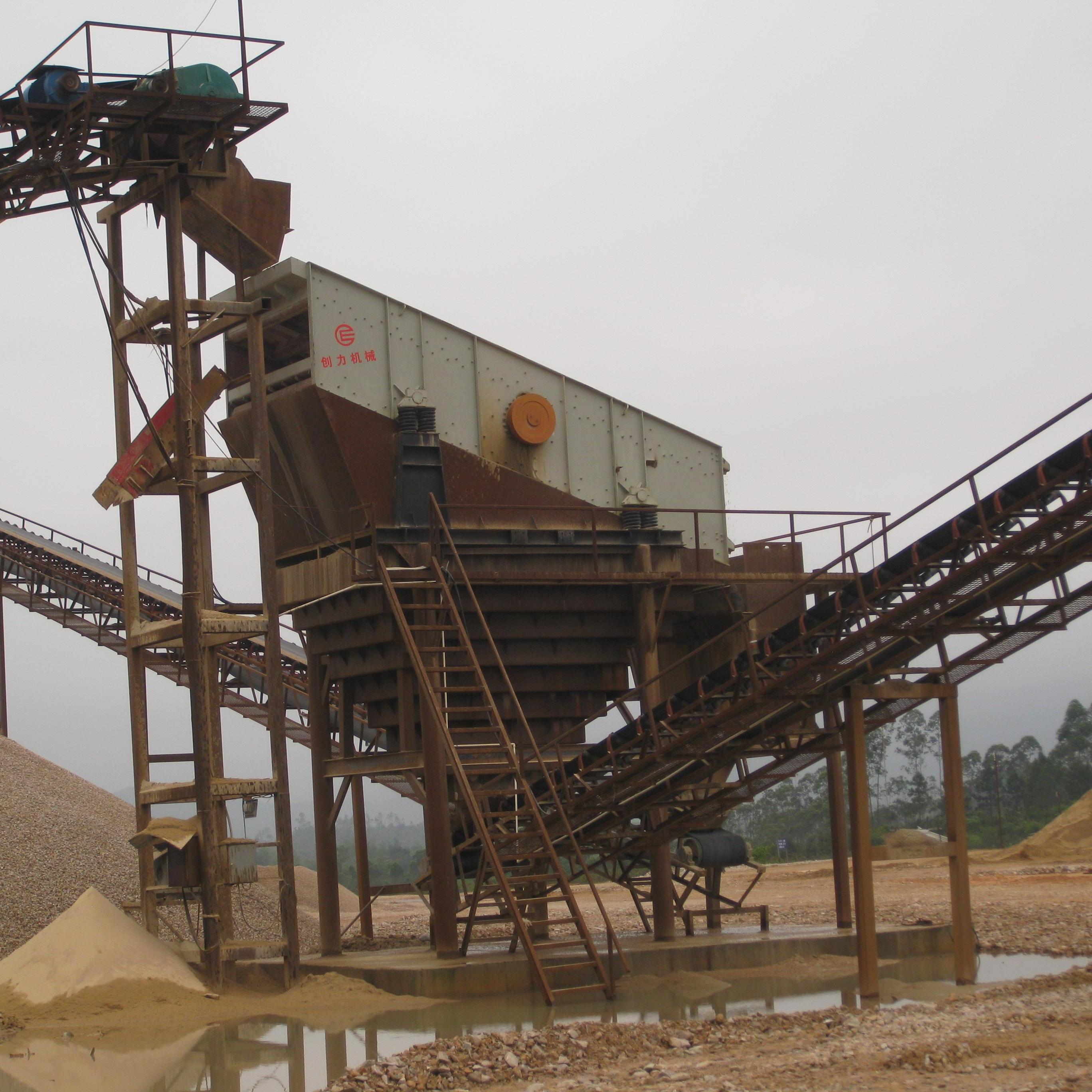

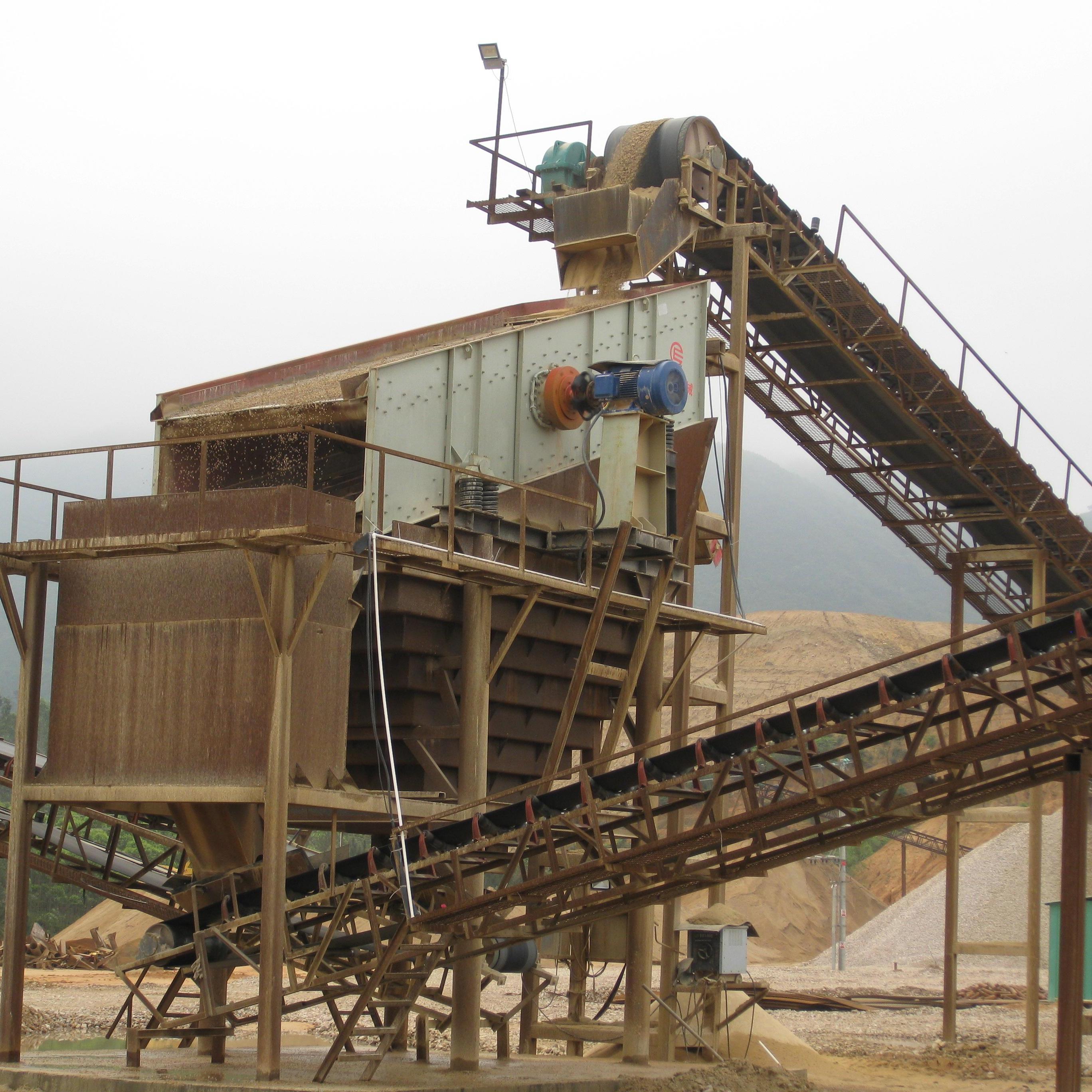

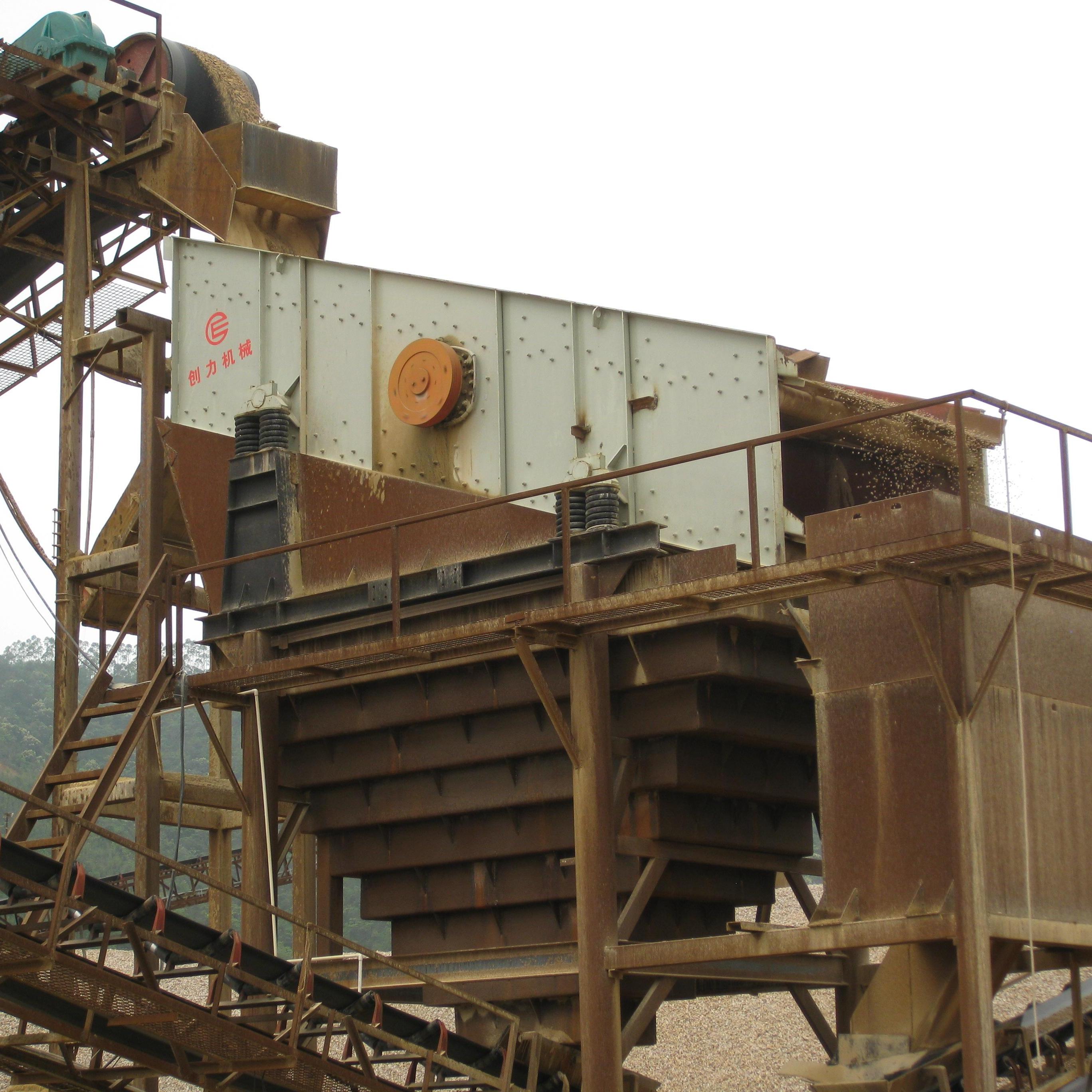

2. Aggregate & Quarry Operations
Grades crushed stone, sand, and gravel into specification sizes for concrete, asphalt, and construction fill.
3. Building Materials & Ceramics
Separates raw materials such as limestone, clay, silica, and feldspar in cement, brick, and tile production.
4. Recycling & Waste Processing
Sizes construction and demolition debris, municipal solid waste, and industrial by-products for material recovery.
5. Chemical & Fertilizer Industries
Classifies granules, powders, and crystalline materials in chemical processing and fertilizer production lines.
| Type | Sifter size mm/(Wide*Length) | Screen hole size (mm) | Feeding (mm) | Capacity (t/h) | Double amplitude (mm) | Motor Type | Direct connection+ Triangle belt | Overall dimension | Weight |
| mm/(L*W*H) | (t) | ||||||||
| mud sifter 2SZZ2255 | 2200*5500 | As customer's request | ≤200 | 300-600 | 7-10 | Y225M-8/22KW | 6356*2850*1470 | 9.5 | |
| mud sifter 2SZZ2655 | 2600*5500 | As customer's request | ≤300 | 400-800 | 7-10 | Y225S-4/37KW | 6356*3250*1550 | 12 | |
| single/mud sifter SZZ2655 | 2600*5500 | As customer's request | ≤300 | 400-1000 | 7-10 | Y280S-8/37KW | 5980*3250*1400 | 11 | |
| bar mud sifter 2SZZ2655 | 2600*5500 | As customer's request | ≤300 | 700-1000 | 7-10 | Y225M-4/45KW | 6350*3250*1550 | 15 | |
| 2SZZ2270 | 2200*7000 | As customer's request | ≤200 | 300-400 | 7-10 | Y225M-8/22KW | 7356*2850*1470 | 10 | |
| 2SZZ2470 | 2400*7000 | As customer's request | ≤300 | 330-450 | 7-10 | Y200L-4/30KW | 7347*3050*1550 | 10 | |
| 2SZZ2670 | 2600*7000 | As customer's request | ≤300 | 400-700 | 7-10 | Y225S-4/37KW | 7347*3050*1550 | 12 | |
| 3SZZ2270 | 2200*7000 | As customer's request | ≤300 | 300-400 | 7-10 | Y225S-4/37KW | 8023*2850*1987 | 15 | |
| 3SZZ2470 | 2400*7000 | As customer's request | ≤300 | 330-450 | 7-10 | Y225M-4/45KW | 8002*3050*2030 | 15.5 | |
| 3SZZ2670 | 2600*7000 | As customer's request | ≤300 | 400-600 | 7-10 | Y225M-4/45KW | 8002*3250*2030 | 16 | |
Performance Comparison: 2SZZ Series vs Conventional Vibrating Screens
| Feature | 2SZZ Series Vibrating Screen | Conventional Circular Vibrating Screen |
|---|---|---|
| Motion Type | Linear vibration | Circular/elliptical vibration |
| Screening Efficiency | Higher for medium/fine materials | Better for coarse separation |
| Deck Customization | Multi-deck, highly flexible | Often limited to 1–2 decks |
| Noise & Vibration | Lower transmitted vibration | Generally higher vibration transfer |
| Ideal For | Fine classification, high accuracy | Coarse screening, primary sizing |
2SZZ vs ZKR Horizontal Screen Comparison
| Feature | 2SZZ Vibrating Screen | ZKR Horizontal Linear Screen |
|---|---|---|
| Installation | Inclined or horizontal | Horizontal, low profile |
| Primary Use | Medium/fine dry/wet screening | Space-constrained plants, high moisture |
| Deck Options | Up to 3 decks | Typically 1–2 decks |
| Motion | Linear, adjustable amplitude | Linear, fixed or adjustable frequency |
| Capacity Range | Up to 1000 t/h | Up to 750 t/h |
Why Choose the 2SZZ Series Vibrating Screen?
High Accuracy & Efficiency: Advanced vibration system ensures precise particle separation and high screening effectiveness.
Customizable & Versatile: Multiple deck options and screen media types adapt to various materials and output needs.
Durable & Low Maintenance: Heavy-duty build and balanced design reduce wear and simplify upkeep.
High Throughput Capability: Large screening area and powerful drive support high-capacity production environments.
Wet & Dry Screening Ready: Effective in both dry classification and dewatering/washing applications.
