ZKR Series Horizontal Linear Vibrating Screen Introduction
The ZKR Series Horizontal Linear Vibrating Screen represents a significant advancement in screening technology, engineered for high-efficiency material classification in mining, aggregates, and recycling operations. Its low-profile horizontal design is ideal for plants with strict height limitations, enabling seamless integration into existing crushing and screening circuits while maximizing floor space utilization and operational flexibility.
| Availability: | |
|---|---|
| Quantity: | |
Product Overview: ZKR Series High-Efficiency Vibrating Screen
The ZKR Series Horizontal Linear Vibrating Screen integrates advanced drive technology with a space-saving horizontal layout to deliver exceptional screening performance across a wide range of industries. Combining the advantages of multiple vibration systems, it ensures precise material separation, high throughput, and reliable operation—even in challenging environments with moisture, fines, or space constraints.
Key Features & Technical Advantages

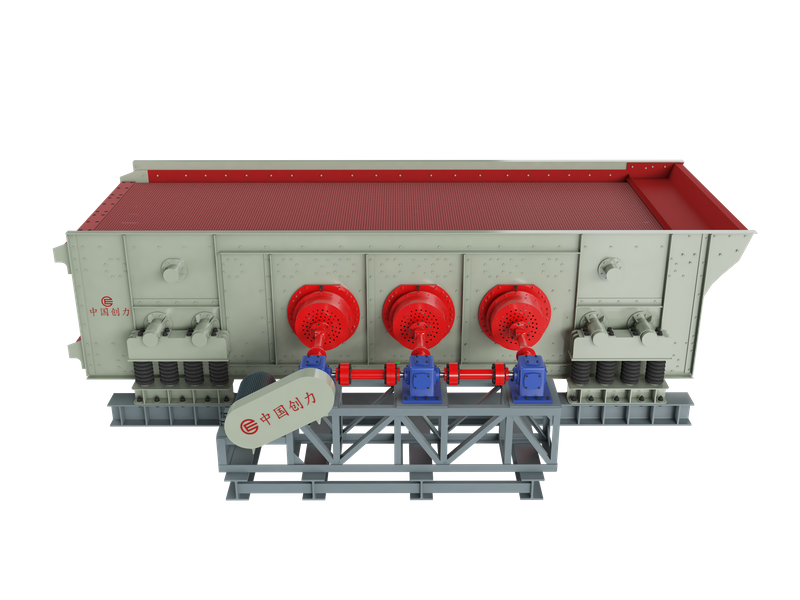

1. Advanced Three-Axis Drive Technology for Superior Material Flow
The ZKR Series employs an innovative three-axis drive system that generates an optimized elliptical motion trajectory. This design enhances material stratification and travel speed across the screen deck, improving both screening efficiency and throughput compared to traditional linear or circular vibrating screens.

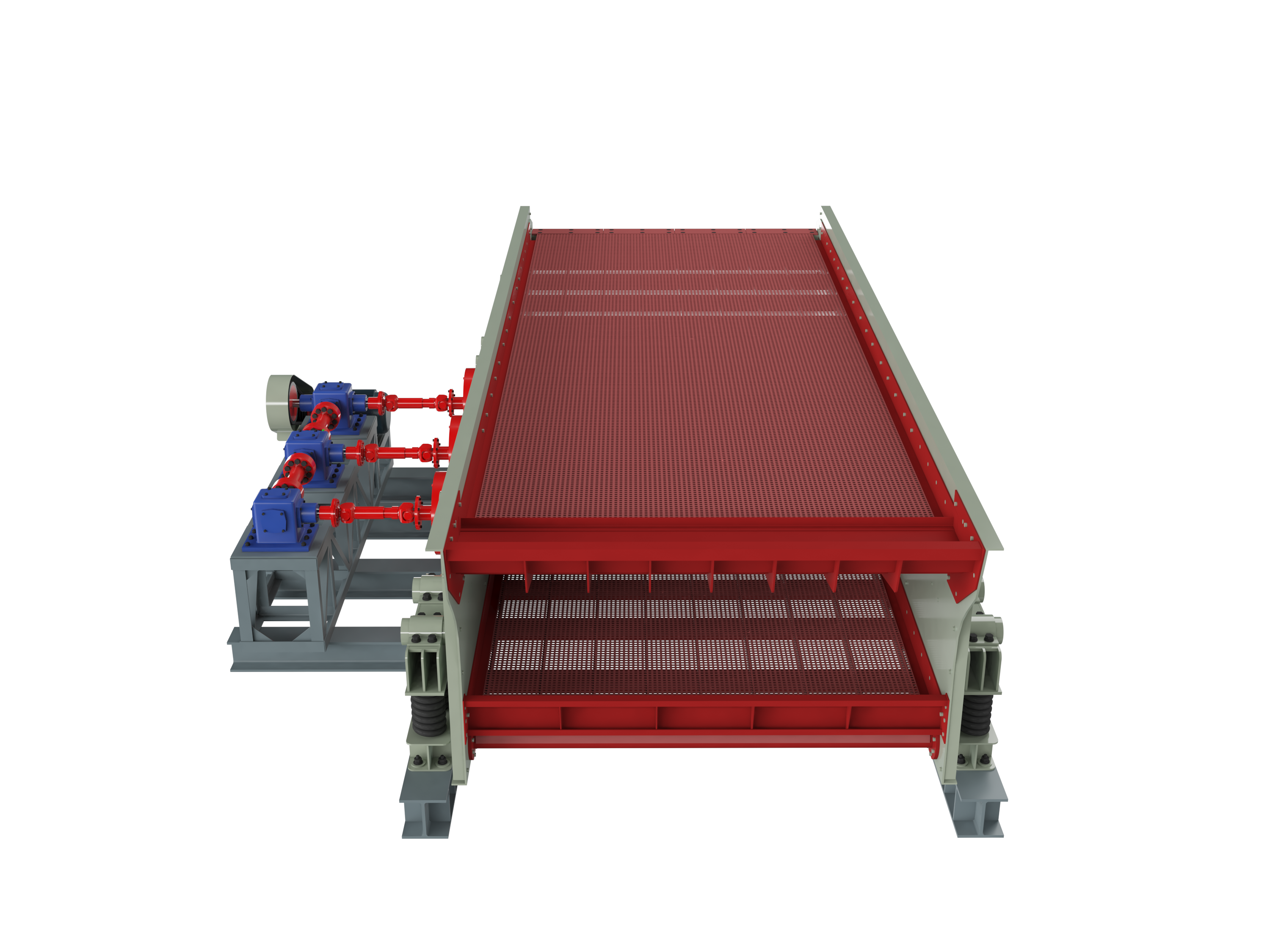

2. Low-Profile Horizontal Design for Space-Constrained Installations
With its horizontal installation layout, the ZKR Series significantly reduces overall height, making it an ideal choice for plants with limited headroom or for integration into multi-stage crushing and screening systems without structural modifications.

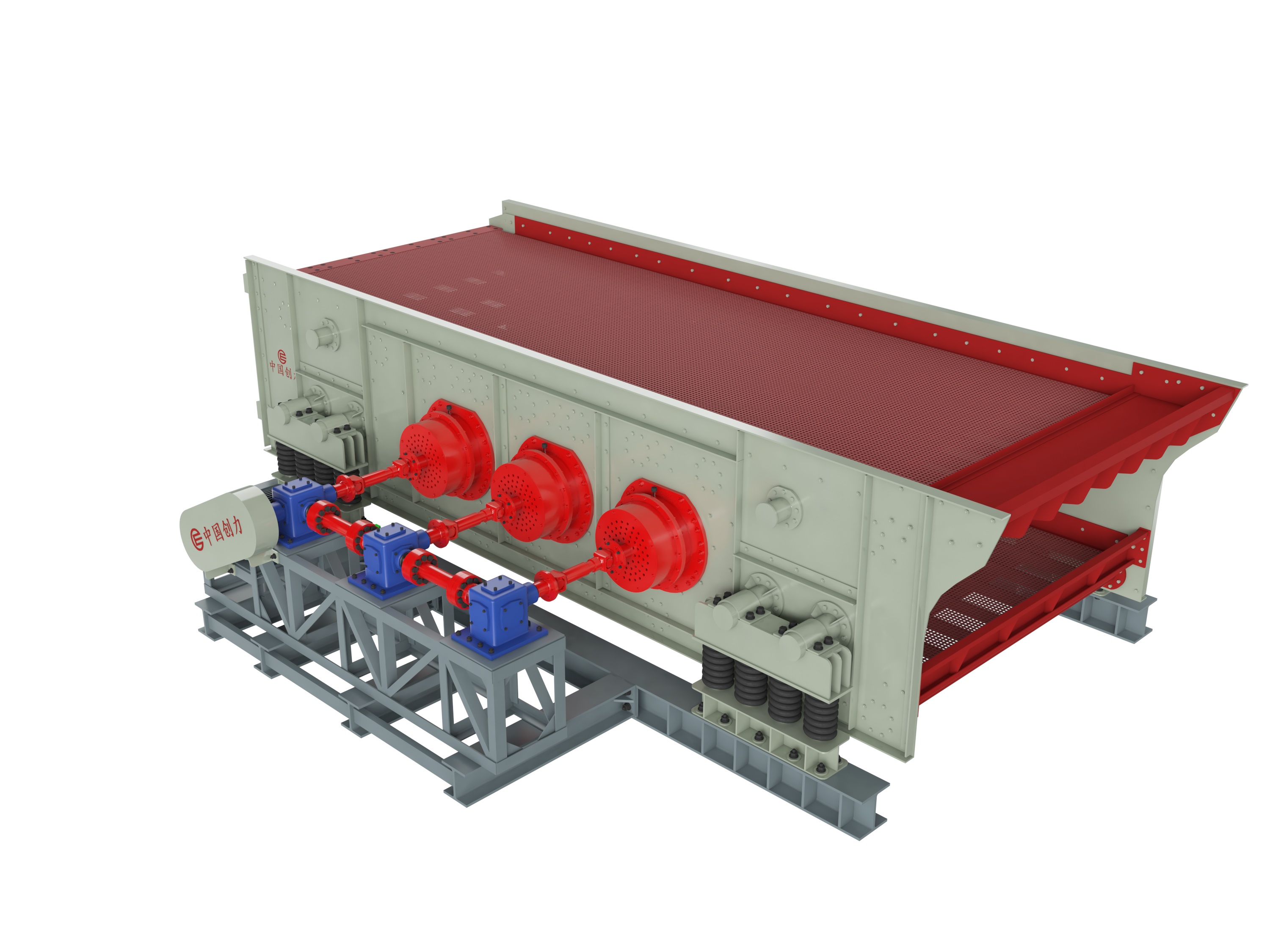

3. Dual Exciter System for Precise & Consistent Vibration
Equipped with a synchronized dual exciter configuration, the screen delivers a stable linear vibration pattern that ensures consistent material distribution and effective separation across various particle sizes—from coarse aggregates to fine sands.
4. High-Capacity Screening with Adjustable Amplitude & Frequency
Models such as the 2ZKR3080 offer capacities of 450–750 t/h, with adjustable double amplitude (9–12 mm) and fixed high-frequency vibration (856 r/min) to match different material characteristics and grading requirements.
5. Robust Construction & Easy Maintenance for Reduced Downtime
Built with heavy-duty materials, reinforced decks, and accessible service points, the ZKR Series ensures long-term reliability, easy screen mesh replacement, and minimal maintenance—supporting continuous operation in demanding environments.
| Type | Feed partical size(mm) | Capacity(t/h) | Double amplitude(mm) | Vibration frequency(r/min) | Power(kW) | Weight(t) |
| 2ZKR3080 | <150 | 450-750 | 9-12 | 856 | 75 | 27 |
| 2ZKR3070 | <150 | 450-750 | 9-12 | 856 | 75 | 30 |
| Technical parameter/Type | 2ZKR2665 |
| Sifter size(mm)(WidexLong) | 2600x6500 |
| Sifter mesh size(mm) | as customer's request |
| Feeding size(mm) | ≤250 |
| Capacity(t/h) | 250-500 |
| Double-amplitude(mm) | 10-12 |
| Motor Type/Direct connection+Triangle belt | Y200L-4/2x30KW |
| overall Dismensions(mm)(LongxWidexHigh) | 7170x3460x2410 |
| Weight(t) | 18 |
Why Choose the ZKR Series?
High Efficiency & Capacity: Optimized vibration pattern ensures accurate sizing and high throughput.
Space-Saving Design: Horizontal layout reduces installation height and simplifies plant integration.
Versatile Application: Suitable for dry and wet screening, aggregates, mining, and recycling.
Durable & Low Maintenance: Robust build quality and easy-access design extend service life and reduce operating costs.
Customizable Screening Layers: Screen mesh size and deck configuration can be tailored to specific material and output requirements.
Typical Applications
Aggregate Screening: Grading of crushed stone, sand, and gravel for construction and road building.
Mining & Mineral Processing: Size classification of ores, coal, and industrial minerals.
Recycling Operations: Separation of construction debris, C&D waste, and recycled aggregates.
Sand & Gravel Plants: Washing, dewatering, and precision sizing in aggregate production lines.
