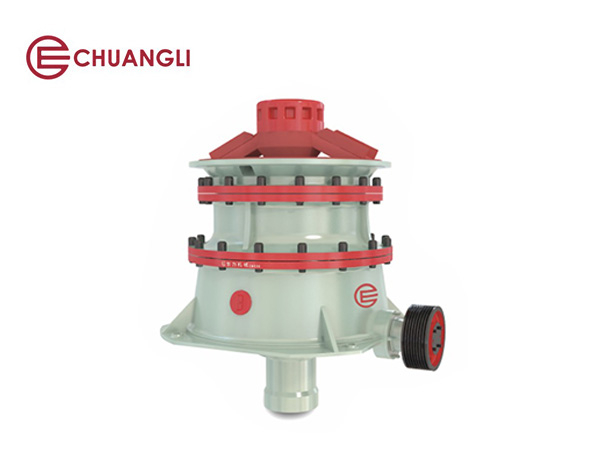

CM800 Cone Crusher Introduction
Our CM800 Cone Crusher is engineered for high-performance secondary and tertiary crushing in demanding applications. Combining world-class crushing technology with a robust and compact design, it delivers strong crushing capacity, a high reduction ratio, and exceptional reliability—making it the optimal choice for aggregate production, mining, and large-scale industrial operations.
| Quantity: | |
|---|---|
Product Description: CM800 High-Capacity Cone Crusher
The CM800 Cone Crusher integrates advanced design and durable construction to achieve high throughput of 1000–1500 t/h with efficient power use. Featuring a high-strength frame, wear-resistant liners, and precision hydraulic controls, it provides consistent output quality and simplified maintenance for continuous, high-volume crushing applications.
Key Features of the CM800 Cone Crusher
1. High Crushing Capacity with Large Feed Opening
Equipped with a 530 mm feeding gate, the CM800 can process large volumes of material, delivering outputs of 1000–1500 t/h—ideal for high-capacity aggregate and mining operations.
2. Advanced Crushing Chamber for Optimal Reduction Ratio

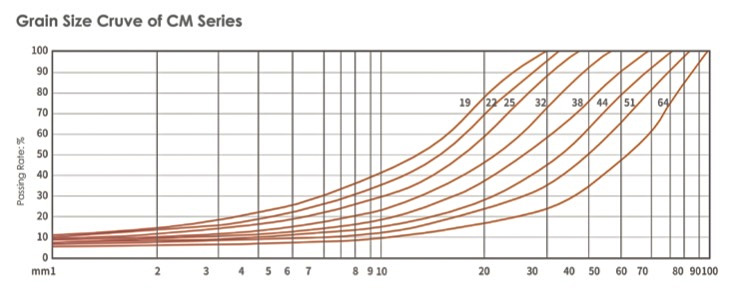

The carefully engineered chamber geometry ensures efficient compression and inter-particle crushing, producing a uniform product with excellent particle shape and gradation, as illustrated in the Grain Size Curve of the CM Series.
3. Robust & Compact Structure for Stable Operation
Constructed with heavy-duty steel and a reinforced frame, the crusher provides long-term stability and durability while maintaining a space-efficient footprint suitable for various plant layouts.
4. Energy-Efficient Design with Low Operational Costs
Despite its high throughput, the CM800 operates with 500 kW power, offering strong performance with optimized energy consumption to reduce overall operating expenses.
5. Hydraulic Adjustment & Overload Protection
The integrated hydraulic system enables quick and precise setting adjustments for product size control while providing reliable overload protection to safeguard the crusher and maximize uptime.
Applications of the CM800 Cone Crusher
1. Large-Scale Aggregate Production
Ideal for producing high-quality crushed stone for concrete, asphalt, and road base in major infrastructure and commercial construction projects.
2. Secondary & Tertiary Crushing in Mining
Used in mineral processing plants to reduce ore size after primary crushing, preparing material for further beneficiation or grinding stages.
3. High-Capacity Sand & Gravel Plants
Supports high-volume production of specification aggregates and manufactured sand for use in ready-mix concrete and industrial applications.
4. Recycling of Construction Materials
Capable of processing reclaimed concrete and demolition debris into reusable aggregates for sustainable building practices.
| Model | Size of feeding gate (mm) | Capacity (t/h) | Power (kw) | Weight (t) |
| CM800 | 530 | 1000 - 1500 | 500 | 70 |
Performance Comparison: CM800 vs Jaw Crusher
| Feature | CM800 Cone Crusher | Jaw Crusher |
|---|---|---|
| Crushing Principle | Continuous compression & attrition | Intermittent compressive motion |
| Best For | Secondary/Tertiary crushing | Primary crushing |
| Capacity Range | 1000–1500 t/h | Typically lower, up to ~1000 t/h |
| Power Efficiency | Higher energy efficiency per ton | Generally higher specific energy use |
| Product Shape | More uniform, cubic particles | More irregular, slab-like fragments |
| Maintenance | Higher initial complexity, but longer wear life | Simpler structure, but more frequent jaw plate replacement |
CM800 vs Hydraulic Cone Crusher (General Comparison)
| Feature | CM800 Cone Crusher | Hydraulic Cone Crusher (Typical) |
|---|---|---|
| Adjustment System | Hydraulic with overload protection | Hydraulic with finer control options |
| Throughput | Very high (1000–1500 t/h) | Variable, often medium to high |
| Application Focus | Large-scale aggregate & mining | Versatile, from shaping to high-volume |
| Design Emphasis | Durability, capacity, uptime | Precision, automation, product shaping |
Why Choose the CM800 Cone Crusher?
High Throughput with Low Energy Use: Delivers 1000–1500 t/h with efficient 500 kW power consumption.
Consistent Product Quality: Engineered chamber design ensures uniform output and excellent particle shape.
Robust & Low-Maintenance: Heavy-duty construction and accessible design reduce downtime and extend service life.
Adaptable to Various Materials: Handles hard rock, ores, recycled concrete, and industrial minerals with reliable performance.
