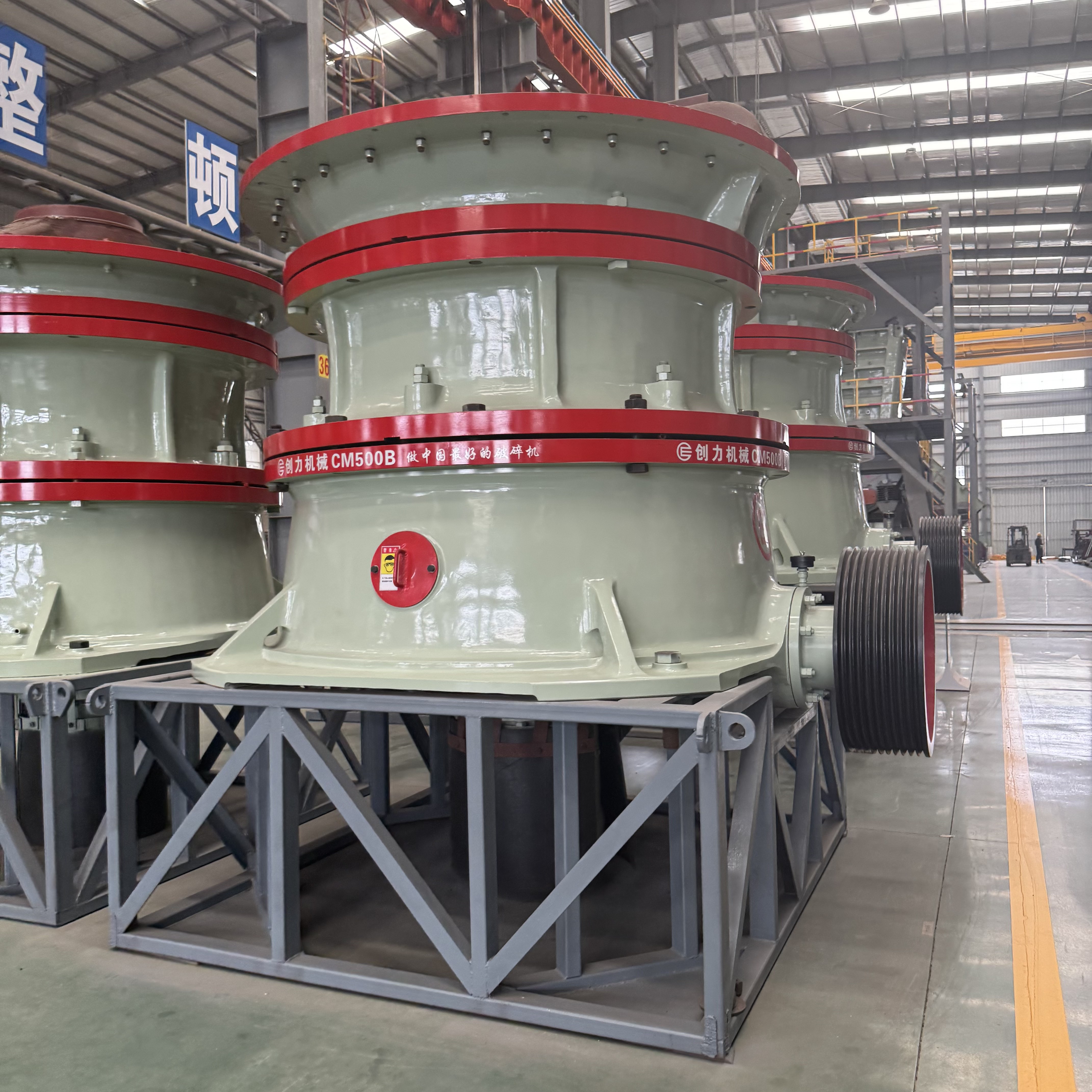

CM500 Cone Crusher Introduction
Our CM500 Cone Crusher represents the second generation of crushing technology, engineered to deliver enhanced performance, efficiency, and operator convenience. Featuring an optimized crushing chamber design and a fully integrated hydraulic adjustment system, it reduces uncrushed material, improves crushing ratios, and ensures precise product size control—all while operating with reduced noise and vibration for a safer, more sustainable crushing environment.
| Quantity: | |
|---|---|
Product Description: CM500 Advanced Cone Crusher
The CM500 Cone Crusher incorporates advanced technological upgrades to build upon classic cone crusher reliability. With a refined chamber geometry that increases material-on-material attrition, along with a hydraulic setting adjustment system and vibration isolation technology, it offers higher throughput, improved product consistency, and enhanced operational comfort for secondary and tertiary crushing applications.
Key Features of the CM500 Cone Crusher
1. Optimized Crushing Chamber for Higher Reduction Ratio
The redesigned chamber enhances inter-particle crushing, reduces uncrushed bypass, and produces a more consistent product with controlled fines generation—ideal for meeting stringent aggregate specifications as demonstrated in the Grain Size Curve of the CM Series.
2. Hydraulic Adjustment System for Quick & Precise Size Control
Integrated hydraulic controls allow operators to adjust the discharge opening quickly and accurately without stopping production, providing flexibility to adapt to varying material or output requirements.
3. Vibration & Noise Reduction Technology
An advanced vibration isolation system significantly reduces operational noise and transmitted vibration, improving operator comfort, protecting surrounding equipment, and enabling deployment in noise-sensitive locations.
4. Enhanced Safety & Operator Protection
Equipped with comprehensive safety guards, interlocks, and accessible control points, the CM500 prioritizes operator safety and simplifies routine inspection and maintenance procedures.
5. Energy-Efficient Performance with High Throughput
With a 500 mm feed opening and 400 kW drive power, the crusher delivers 700–1000 t/h capacity while maintaining low specific energy consumption per ton of material processed.
Applications of the CM500 Cone Crusher
1. High-Quality Sand & Gravel Production
Used in aggregate plants to produce consistently graded sand and gravel for concrete, asphalt, and construction fill, with optimized particle shape and minimal oversize.
2. Industrial Minerals Processing
Ideal for reducing talc, feldspar, mica, and other industrial minerals to specification sizes for further refining or direct application in ceramics, paints, and composites.
3. Demolition & Construction Waste Recycling
Processes concrete, bricks, and masonry waste into reusable aggregates, supporting circular economy practices in urban redevelopment and green building projects.
4. Landscaping & Decorative Aggregate Supply
Produces uniformly crushed stone for pathways, driveways, garden features, and architectural surfaces where aesthetics and consistency are important.
| Model | Size of feeding gate (mm) | Capacity (t/h) | Power (kw) | Weight (t) |
| CM500 | 500 | 700 - 1000 | 400 | 41 |
Performance Comparison: CM500 vs CM800 Cone Crushers
| Feature | CM500 Cone Crusher | CM800 Cone Crusher |
|---|---|---|
| Feed Opening | 500 mm | 530 mm |
| Capacity Range | 700–1000 t/h | 1000–1500 t/h |
| Power | 400 kW | 500 kW |
| Weight | 41 t | 70 t |
| Design Focus | Enhanced chamber, vibration control, operator safety | High throughput, heavy-duty endurance, large-scale mining |
| Ideal Application | Medium to high-capacity aggregate & industrial crushing | Very high-capacity mining and major infrastructure |
CM500 vs Jaw Crusher (Primary Crushing Comparison)
| Feature | CM500 Cone Crusher | Jaw Crusher |
|---|---|---|
| Stage | Secondary/Tertiary | Primary |
| Product Shape | More uniform, cubical output | Irregular, often elongated |
| Throughput Efficiency | Higher t/h per kW in medium-hard materials | Effective for very large feed, but lower shaping control |
| Noise & Vibration | Lower due to vibration isolation | Typically higher impact noise |
Why Choose the CM500 Cone Crusher?
Higher Efficiency with Optimized Chamber: Improves reduction ratio and product quality while reducing recirculation load.
Quieter, Cleaner Operation: Vibration isolation lowers environmental impact and increases site compliance.
Quick-Adjust Hydraulic System: Enables real-time product tuning without downtime.
Safety-Integrated Design: Protects operators and simplifies maintenance access.
Proven in Diverse Materials: Effective in aggregates, industrial minerals, and recycled materials.
