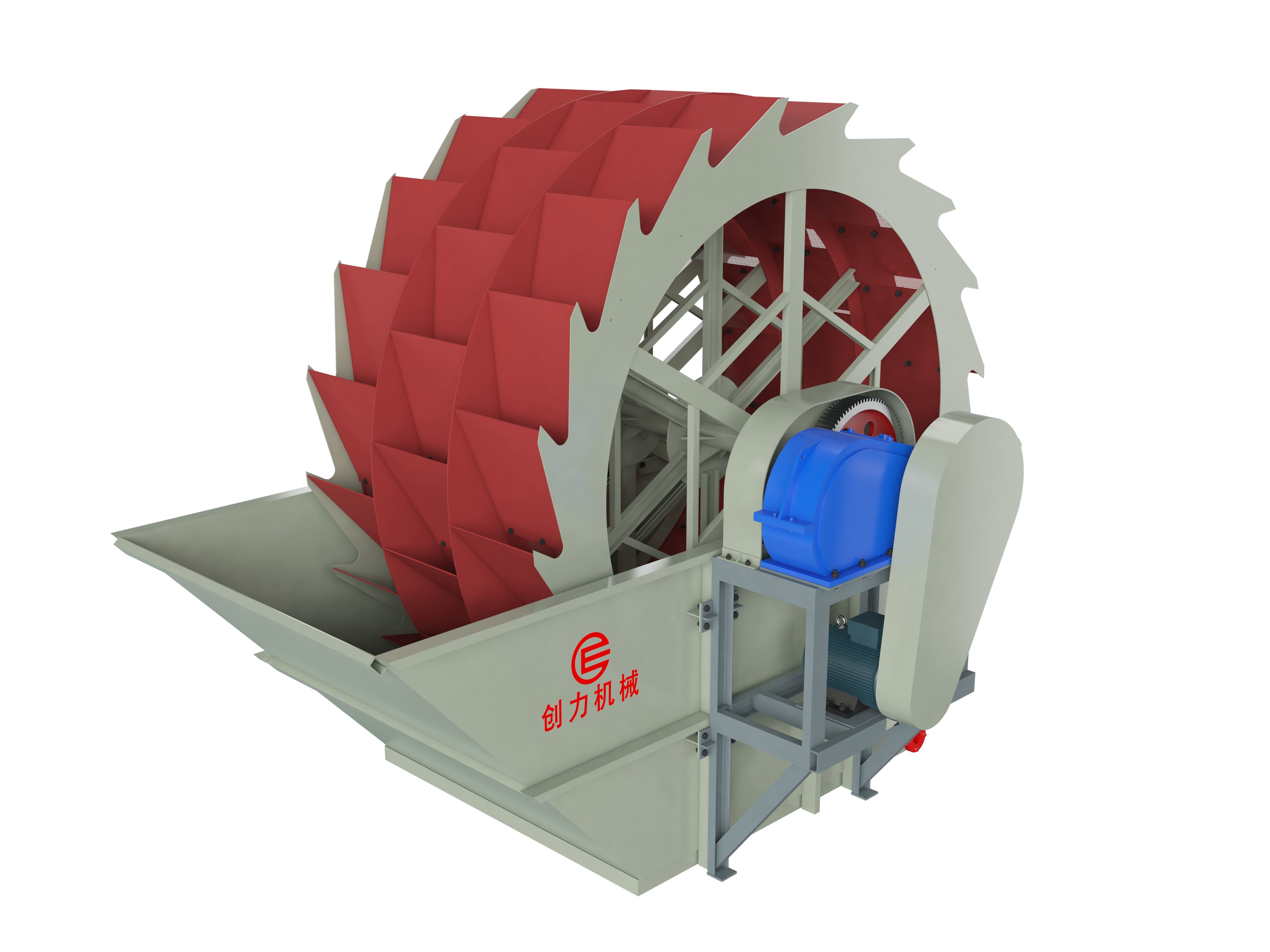

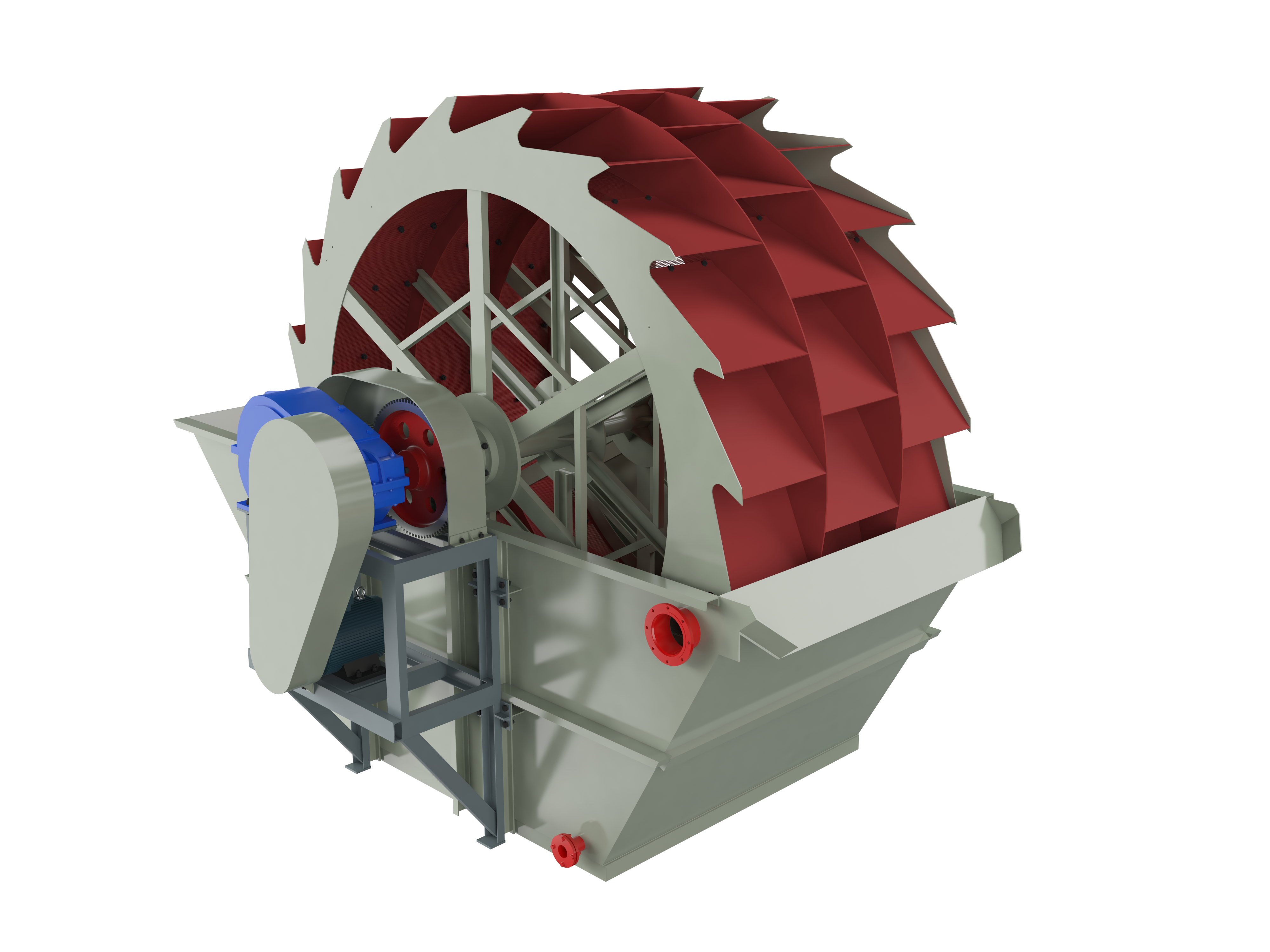

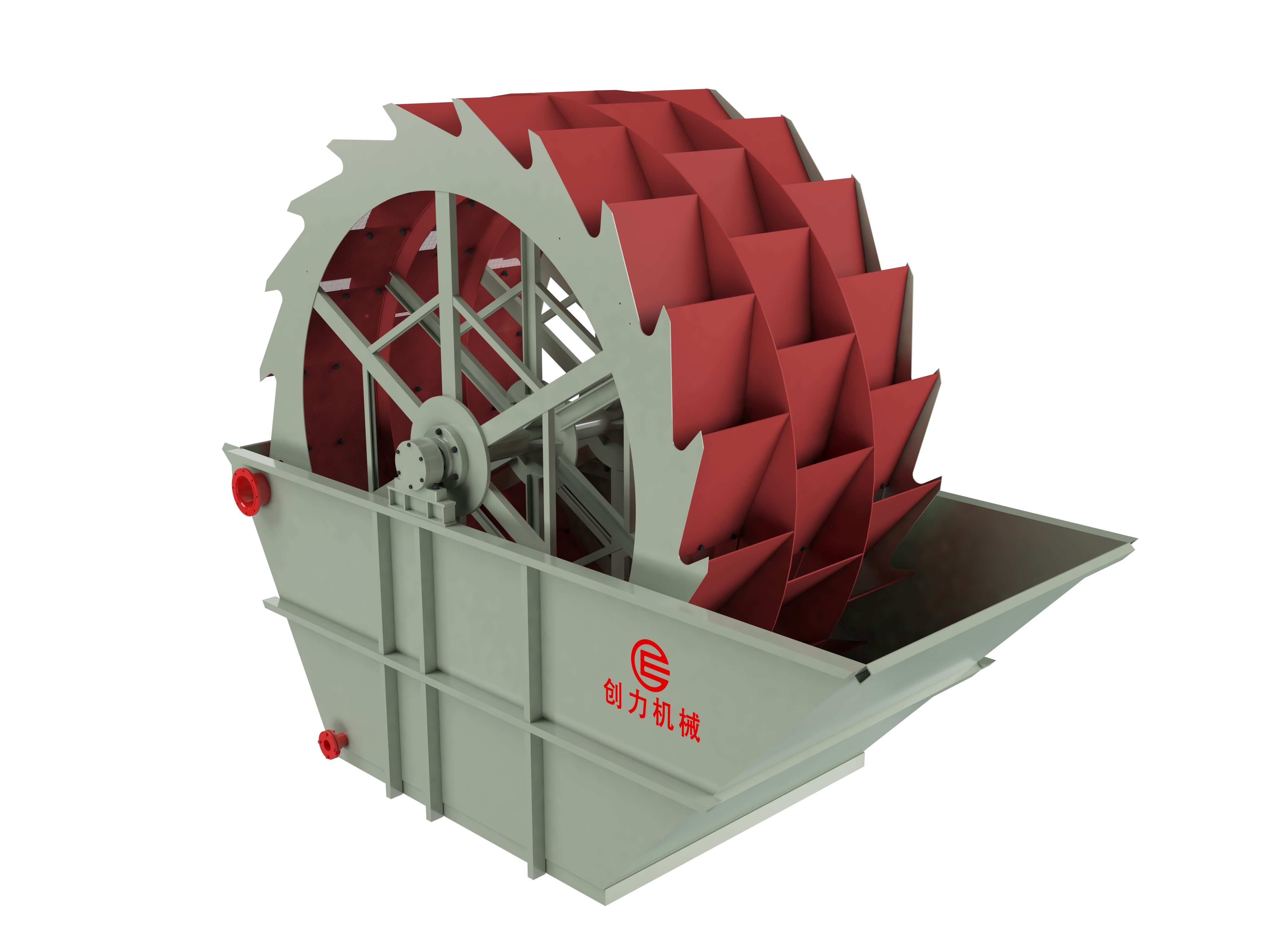

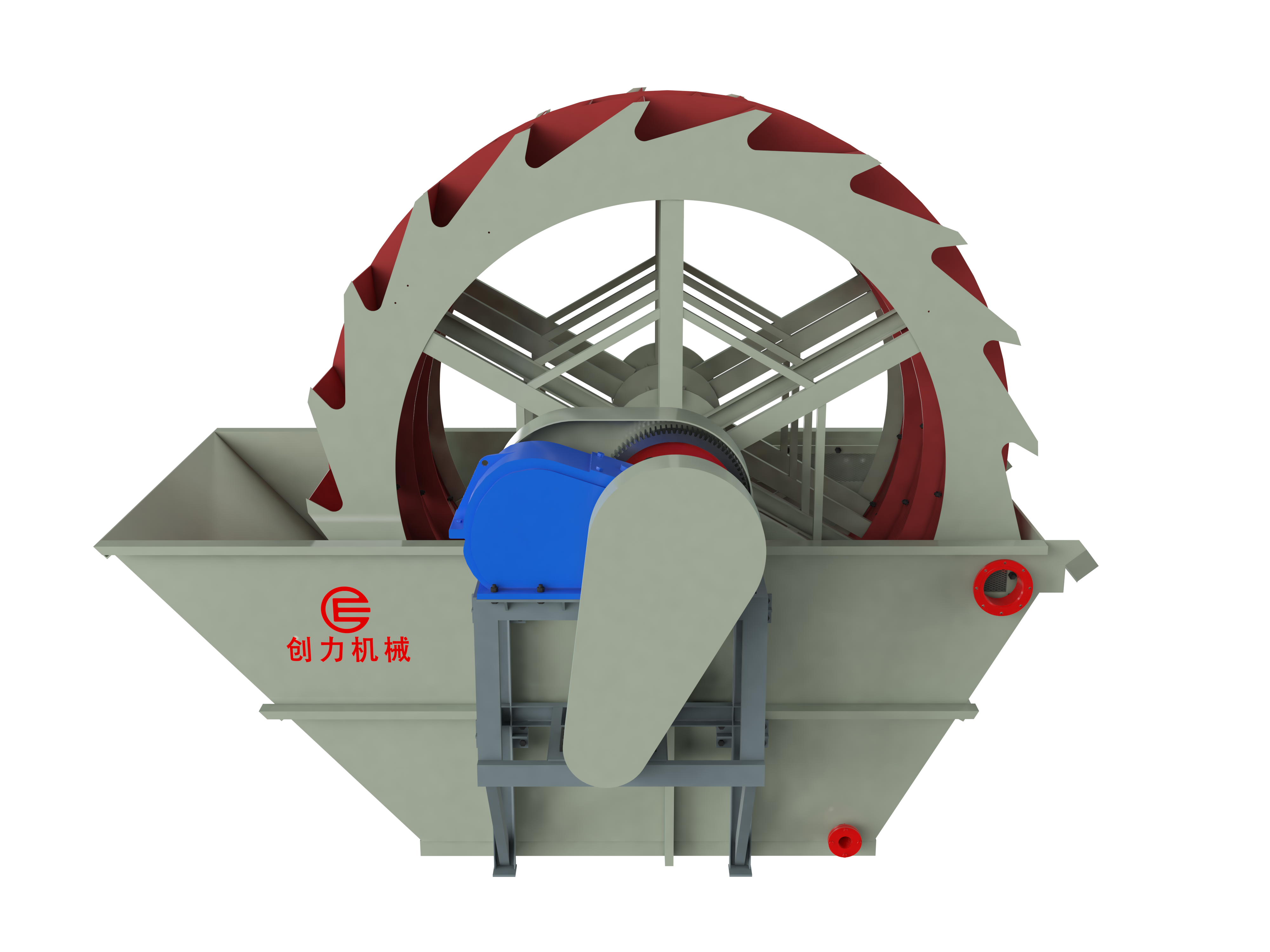

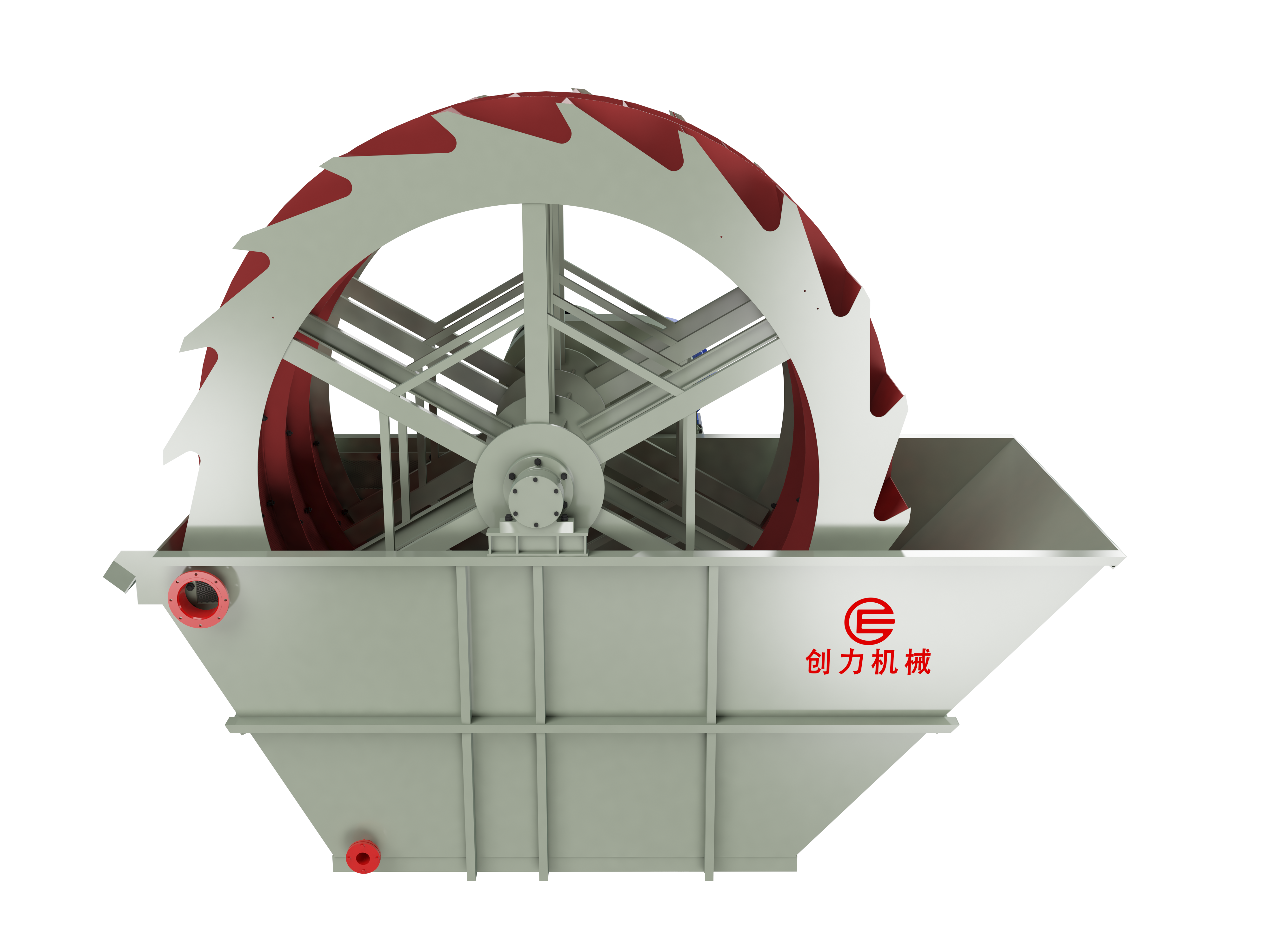

XS Series Impeller Sand Washing Machine Introduction
The XS Series Impeller Sand Washing Machine is engineered for efficient, reliable cleaning of sand and fine aggregates across construction, mining, and industrial applications. Featuring a simple yet robust structure, high processing capacity, and low power consumption, it delivers clean sand with minimal material loss while ensuring stable operation, easy maintenance, and extended service life—providing a cost-effective solution for high-quality sand production.
| Quantity: | |
|---|---|
Product Overview: XS Series High-Efficiency Sand Washer
The XS Series Sand Washing Machine represents advanced washing technology designed to meet the rigorous demands of modern sand processing. With optimized impeller design, efficient water utilization, and durable construction, it ensures thorough cleaning, effective impurity removal, and reliable performance in various material washing and purification applications—from aggregate plants to mining operations.
Key Features of the XS Series Sand Washer
1. Simple & Robust Structure for Stable Operation
The machine features an intelligently simplified design with high-quality materials and precision engineering, ensuring reliable, continuous operation under heavy-duty conditions while allowing easy access for inspection and maintenance.
2. High Processing Capacity with Energy Efficiency
Engineered for productivity, models such as the XS4020 deliver 150–200 t/h with only 22 kW power, balancing high throughput with low energy consumption to reduce operational costs.
3. Superior Cleaning Performance with Minimal Sand Loss
The optimized impeller and water flow dynamics ensure effective removal of impurities, dust, and contaminants while minimizing fine sand loss, resulting in higher product quality and yield.
4. Durable Construction with Low Operating Costs
Built with wear-resistant materials in critical components and designed with fewer vulnerable parts, the XS Series extends service intervals, reduces maintenance frequency, and lowers long-term operating expenses.
5. Versatile & Adaptable to Various Applications
Suitable for washing natural sand, crushed sand, and industrial minerals, the machine supports flexible integration into stationary plants or mobile setups across multiple industries.
Applications of the XS Series Sand Washer
1. Aggregate Washing for Construction Sand
Used in sand and gravel plants to wash natural and crushed sand, removing clay, dust, and organic impurities to meet concrete and asphalt specifications.
2. Mining & Mineral Sand Processing
Cleans silica sand, industrial minerals, and ores to improve purity and marketability for glass, foundry, ceramic, and chemical industries.
3. Recycling & C&D Waste Material Washing
Processes recycled concrete, masonry, and demolition sand to remove contaminants and produce clean aggregates for reuse in construction.
4. Ready-Mix Concrete & Precast Plants
Ensures consistent sand quality by washing aggregate feed, enhancing concrete strength, workability, and finish quality.
Type | XS2816 | XS3220 | XS4020 | XS5025 |
Wheel Bucket Diameter(mm) | 2800 | 3200 | 4000 | 5000 |
Rotation Speed (r/min) | 2 | 1.3 | 1.3 | 1.3 |
Processing Capacity(t/h) | 70-100 | 100-150 | 150-200 | 250-350 |
Motor Power (kW) | 7.5 | 15 | 22 | 30 |
Total Weight (kg) | 4500 | 6000 | 8000 | 12000 |
Dimensions (L xW xH)(mm) | 4410x2909x3034 | 4500x3370x3375 | 5400x3564x4176 | 6500x4300x5200 |
Performance Comparison: XS Series vs Spiral Sand Washer
| Feature | XS Impeller Sand Washer | Spiral Sand Washer |
Washing Principle | Impeller-driven water agitation | Spiral lifting & rinsing |
Capacity Range | 70–350 t/h | Typically lower, up to 200 t/h |
Fine Sand Recovery | Excellent, low loss | Good, but may have higher fine loss |
Power Consumption | Lower per ton washed | Generally higher due to spiral drive |
Footprint | Compact, vertical design | Longer, horizontal layout |
Maintenance | Fewer moving parts, simpler | More mechanical components |
Why Choose the XS Series Sand Washer?
High Efficiency with Low Energy Use: Delivers high washing capacity with minimal power consumption.
Low Wear & Maintenance: Durable design with fewer vulnerable parts reduces operating costs and downtime.
Superior Sand Quality: Effectively removes impurities while minimizing fine material loss.
Flexible Model Range: Multiple sizes from 70 to 350 t/h to match different production scales.
Easy Integration: Compatible with various crushing and screening setups in fixed or mobile plants.
