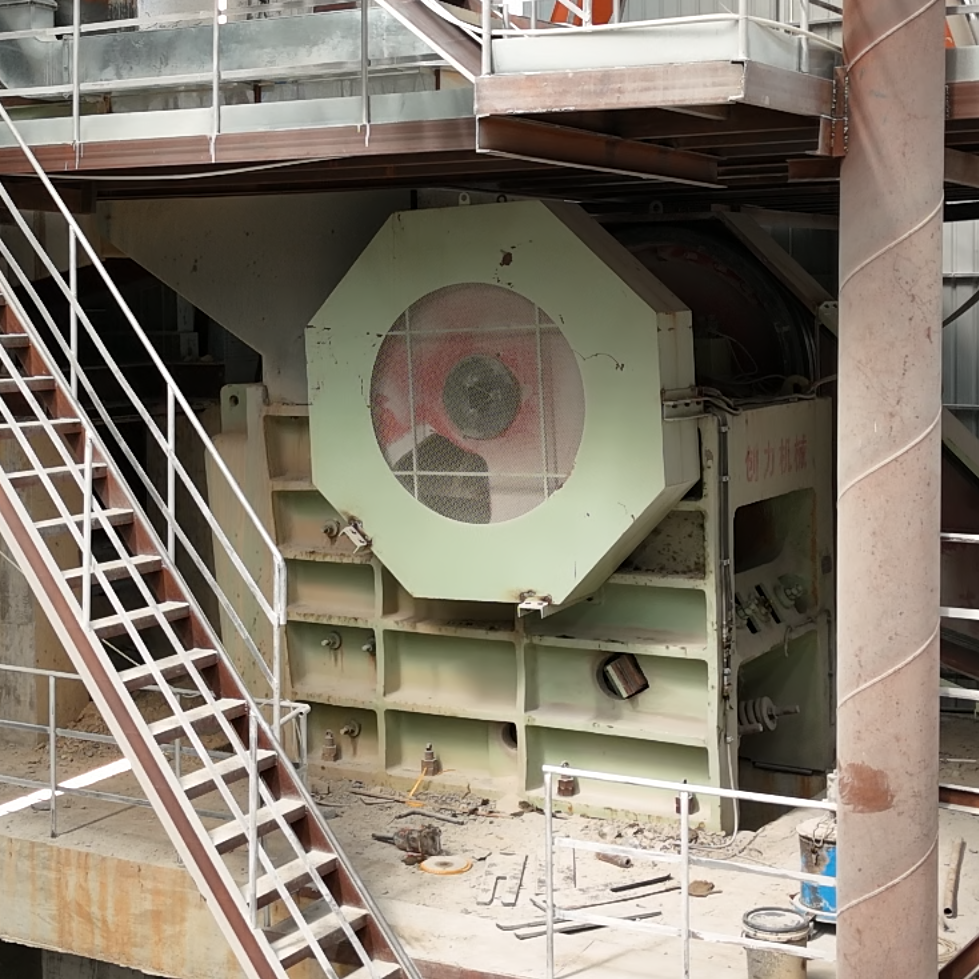

PE1600 Jaw Crusher Introduction
The PE1600 Jaw Crusher is a high-capacity, heavy-duty primary crushing solution engineered for large-scale mining, quarrying, and major infrastructure projects. Designed as the next evolution in the renowned PE Series, it combines robust construction, a massive 1300 × 1600 mm feed opening, and a throughput of 800–1300 t/h to handle the toughest and most abrasive materials with reliability and efficiency.
| Quantity: | |
|---|---|
Product Overview: PE1600 Primary Jaw Crusher
The PE1600 Jaw Crusher represents the pinnacle of jaw crushing technology, built to process large feed sizes up to 1100 mm into uniformly crushed aggregate with a discharge range of 250–350 mm. With a 315–400 kW motor and a weight of 110 tons, it is engineered for continuous, high-volume production in the most demanding operational environments.
Key Features of the PE1600 Jaw Crusher

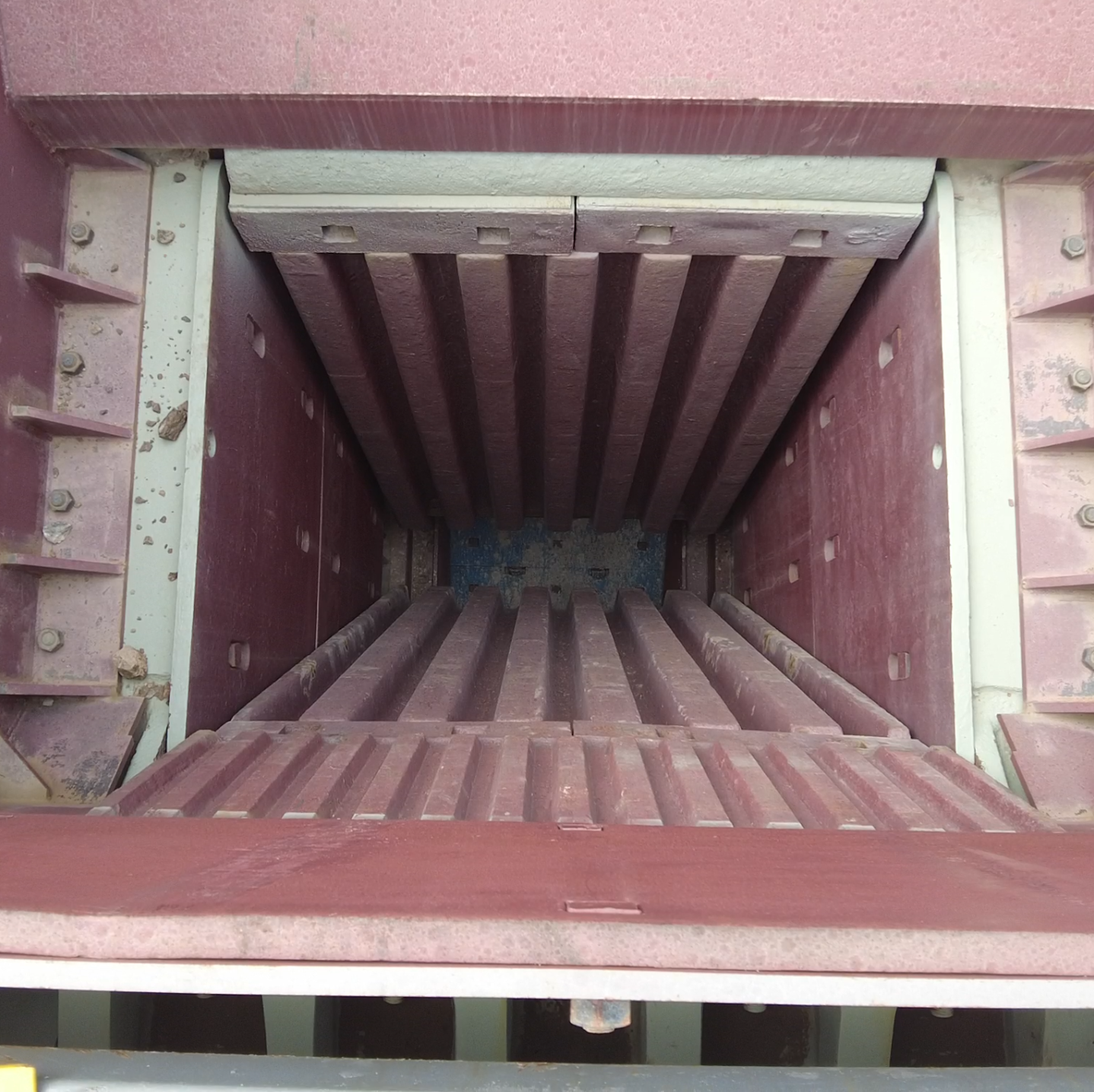

1. Large Feed Opening for High Throughput
Features a 1300 mm × 1600 mm feed inlet, enabling efficient processing of large blasted rock and run-of-mine ore, supporting throughputs of 800–1300 t/h in primary crushing applications.

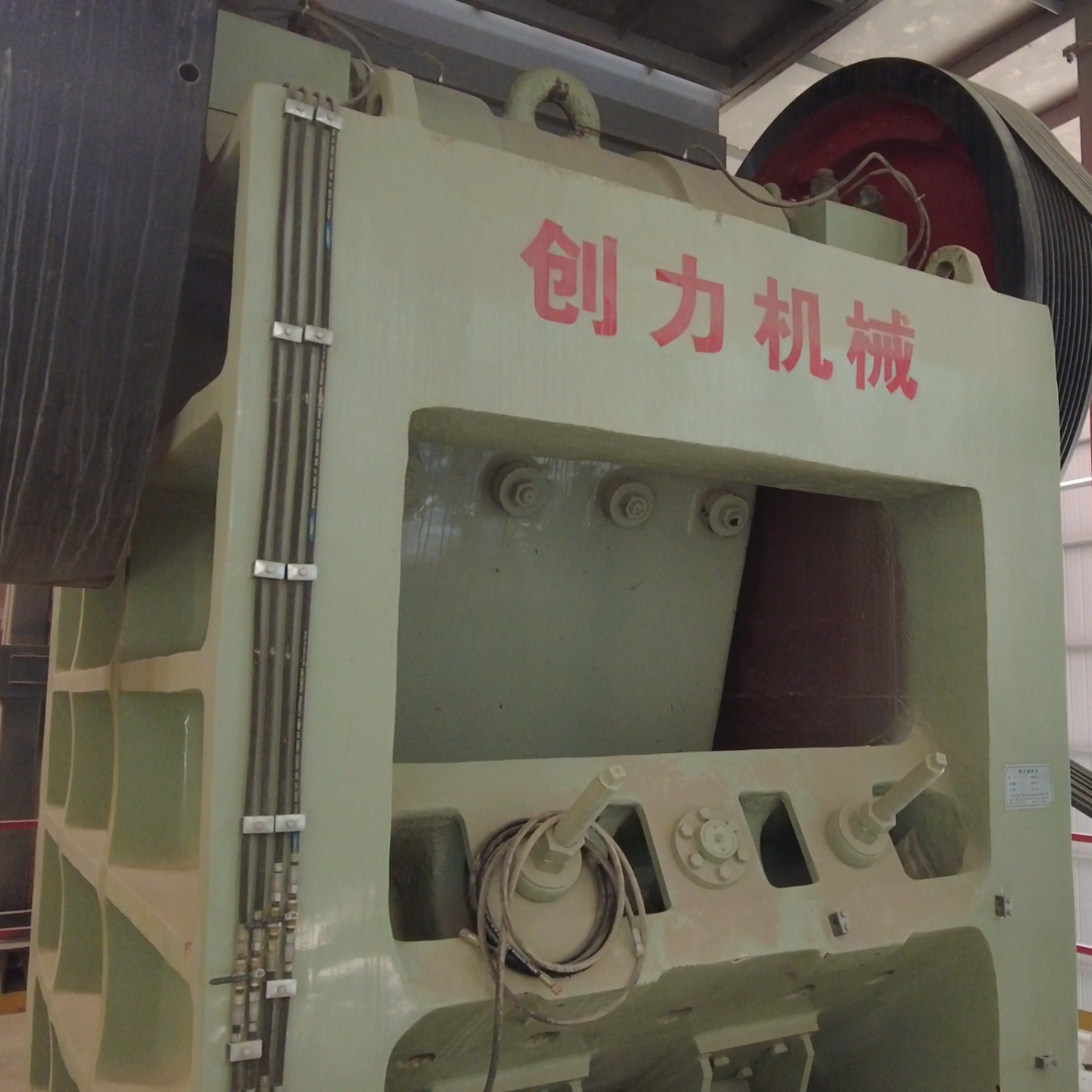

2. Robust Frame & Heavy-Duty Components
Constructed with high-strength steel and reinforced casting, the crusher is built to withstand extreme loads and abrasive materials, ensuring long-term structural integrity and operational reliability.
3. Adjustable Discharge Setting for Product Flexibility
The discharge opening is adjustable within a 250–350 mm range, allowing operators to control product size to meet specific project requirements without compromising crushing efficiency.
4. High-Efficiency Drive System with Powerful Motor
Powered by a YR400S1-6 motor (315–400 kW) operating at 990 rpm, the crusher delivers strong crushing force with optimized energy consumption for cost-effective operation.
5. Easy Maintenance & Service Accessibility
Designed with accessible lubrication points, replaceable wear parts, and modular components to simplify
Applications of the PE1600 Jaw Crusher
1. Large-Scale Mining & Ore Primary Crushing
Ideal for reducing run-of-mine copper, iron, gold, and other metallic ores in high-tonnage mining operations.
2. Major Quarry & Aggregate Production
Processes blasted granite, basalt, and limestone into primary crushed stone for construction, road base, and rail ballast.
3. Infrastructure & Mega Project Material Preparation
Supplies crushed aggregate for dams, highways, ports, and large-scale civil engineering projects requiring high-volume, consistent feedstock.
4. Cement & Industrial Mineral Primary Reduction
Handles large limestone, gypsum, and clinker feed in cement plants and industrial mineral processing facilities.
inspections, reduce downtime, and extend equipment lifespan.
| Model | PE1600 |
| Feeding Date (W*L) | 1300 * 1600 |
| Discharge Wide in B | 250 - 350 |
| Max. Feeding Grain Size (mm) | 1100 |
| Capacity (t/h) | 800 - 1300 |
| Weight (t) | 110 |
| External Dimension (L * W * H) | 4364 * 3350 * 4378 |
| Motor Type | YR400S1-6 |
| Power (kw) | 315 - 400 |
| Rotate Speed (rotate / min) | 990 |
Performance Comparison: PE1600 vs PE1500 Jaw Crusher
| Feature | PE1600 | PE1500 |
|---|---|---|
| Feed Opening | 1300 × 1600 mm | Typically smaller (e.g., 1500 × 1200 mm) |
| Max. Feed Size | 1100 mm | ~1000 mm |
| Capacity | 800–1300 t/h | ~600–1000 t/h |
| Motor Power | 315–400 kW | ~250–315 kW |
| Weight | 110 t | ~90–100 t |
| Typical Use | Extra-large primary crushing | Large primary crushing |
Why Choose the PE1600 Jaw Crusher?
High Capacity: Processes 800–1300 t/h, suitable for mega-scale operations.
Large Feed Acceptance: Handles up to 1100 mm feed size for reduced pre-crushing needs.
Robust & Reliable: Heavy-duty design ensures continuous operation with minimal downtime.
Energy Efficient: Powerful motor with optimized crushing kinematics reduces kWh per ton.
Proven PE Series Heritage: Built on decades of jaw crusher engineering excellence.
