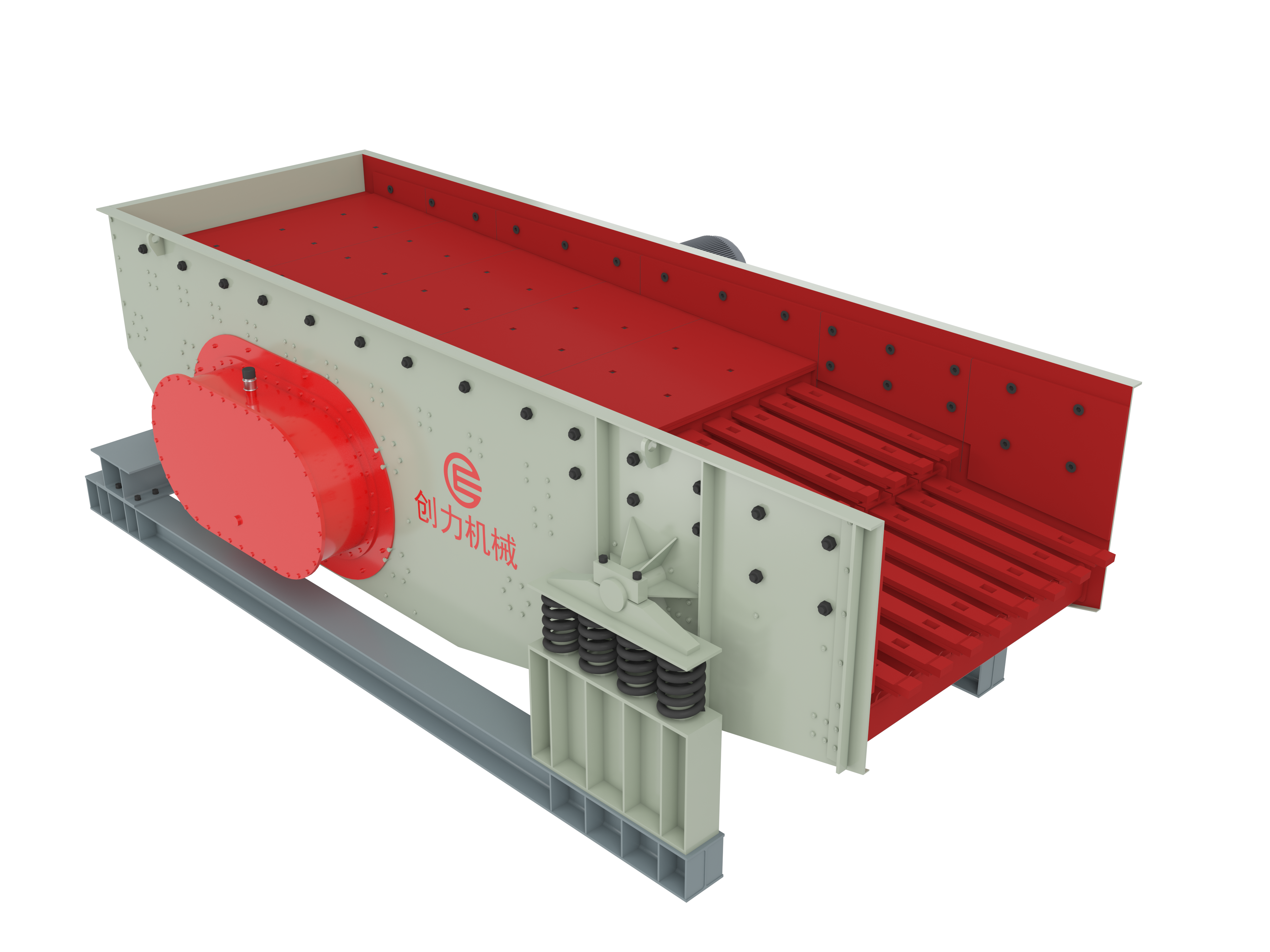

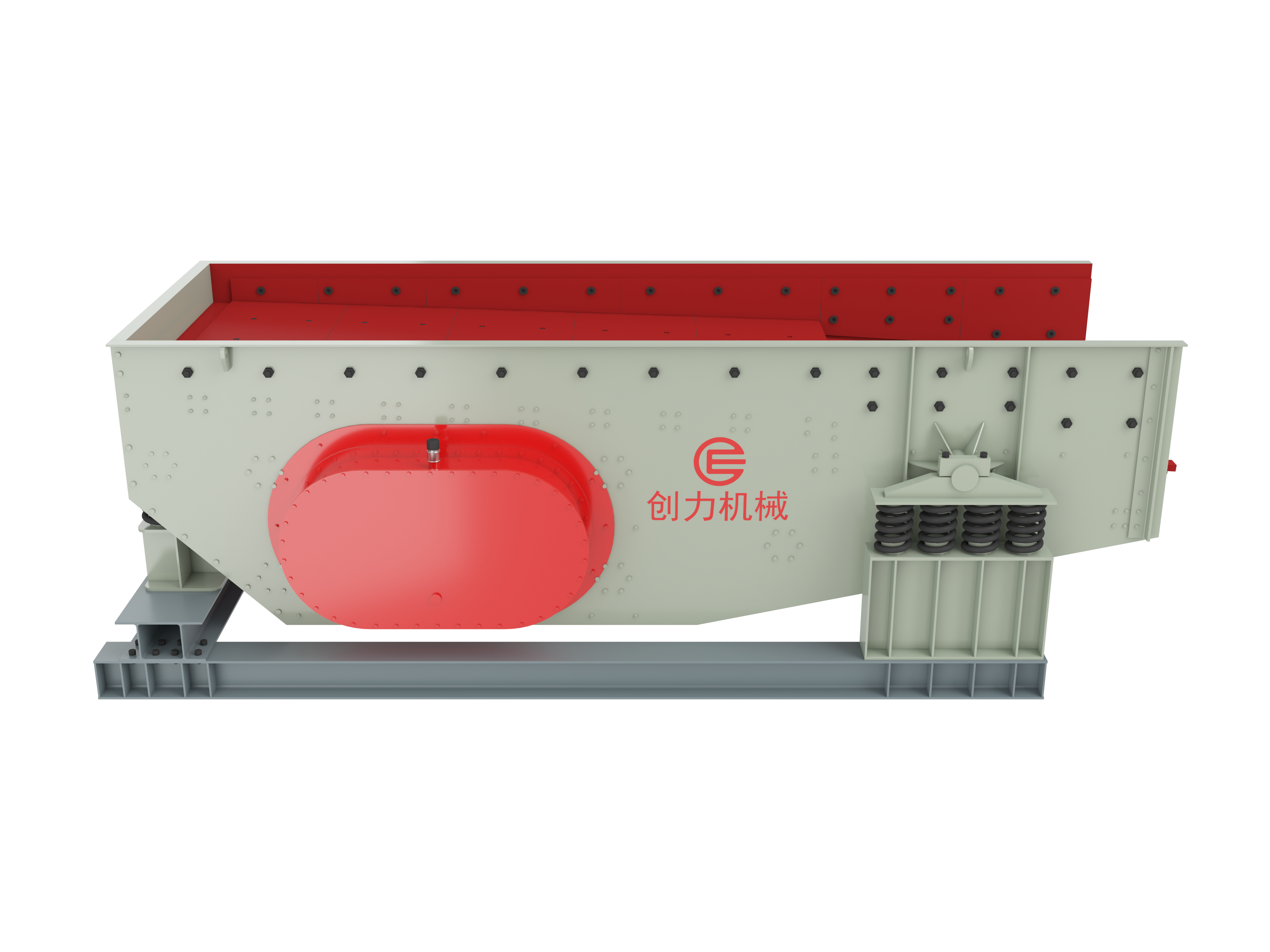

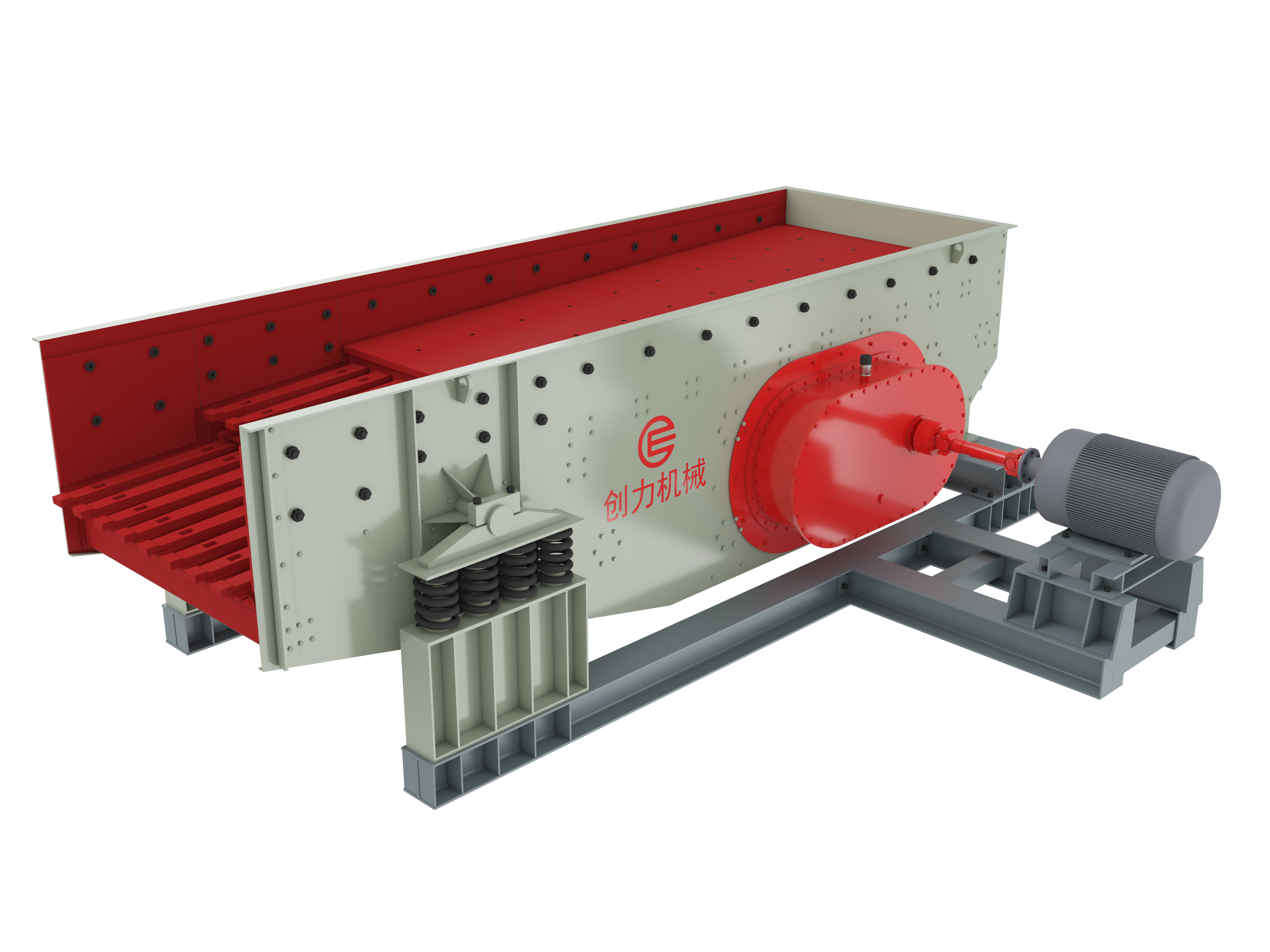

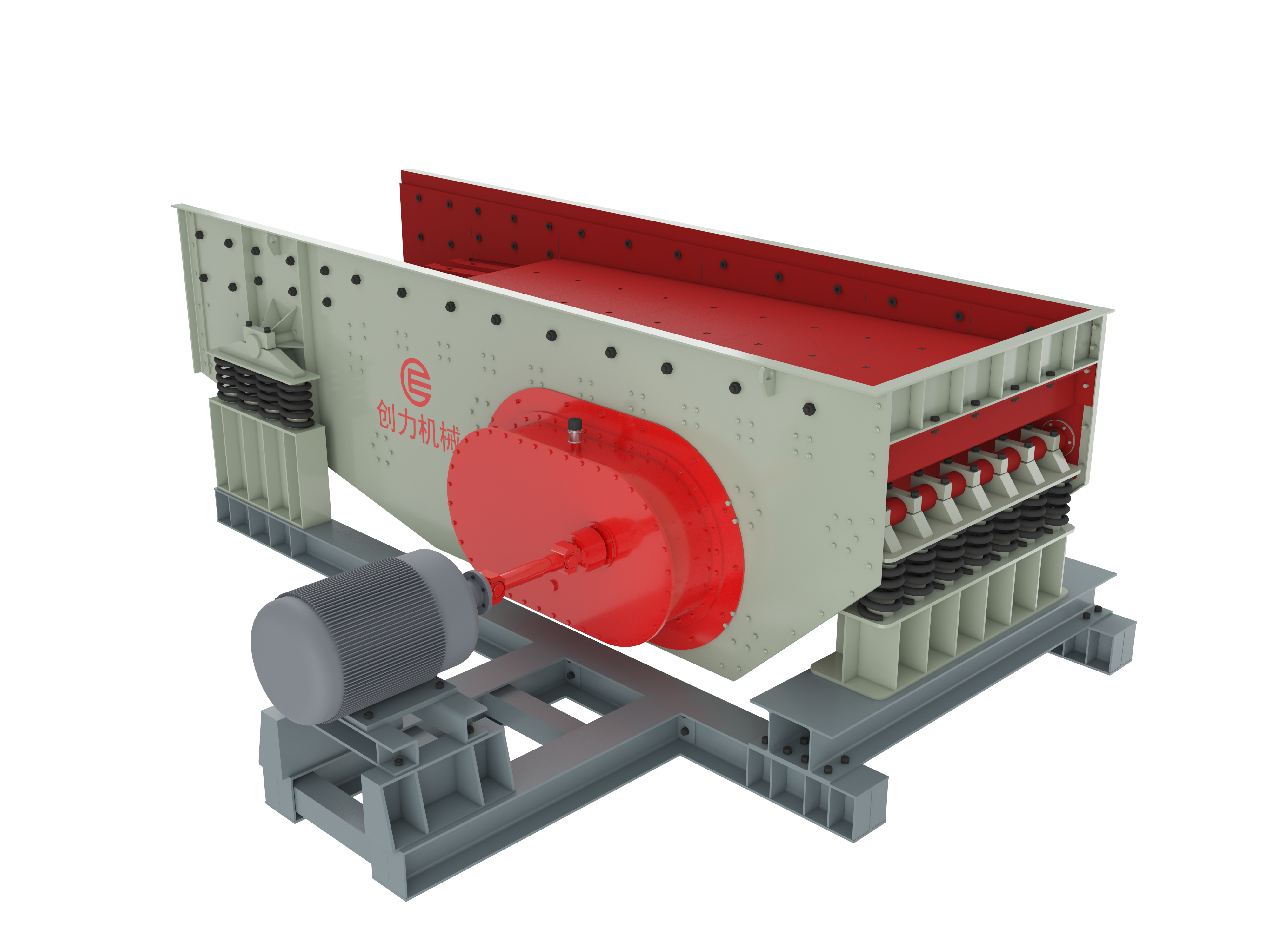

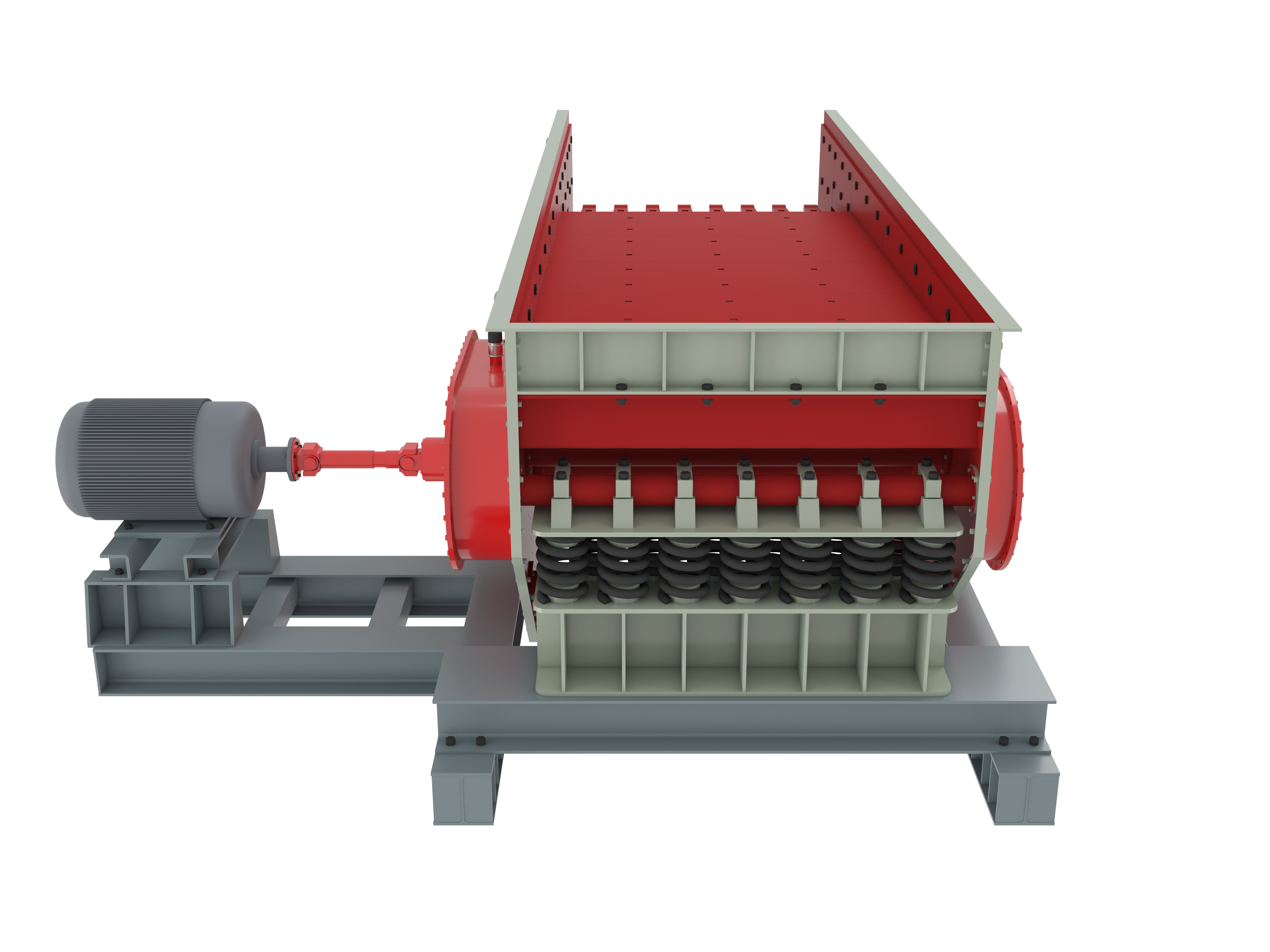

ZSW Series Linear Vibrating Feeder Introduction
The ZSW Series Linear Vibrating Feeder is engineered for uniform feeding and coarse screening of block and granular materials from storage bins to primary crushers. Featuring precision-machined bearing seats, advanced oil lubrication, and stable vibration performance, it ensures reliable operation, long service life, and high throughput in demanding industrial environments such as metallurgy, coal mining, mineral processing, building materials, and chemical industries.
| Quantity: | |
|---|---|
Product Overview: ZSW Series High-Efficiency Vibrating Feeder
The ZSW Series Vibrating Feeder is a robust and precision-engineered feeding solution designed to deliver continuous, controlled material flow in crushing and screening circuits. Combining CNC-machined construction, adjustable slot inclination, and superior lubrication technology, it enhances equipment reliability, extends component lifespan, and optimizes overall system productivity across a wide range of bulk material handling applications.
Key Features of the ZSW Series Vibrating Feeder
1. Precision-Machined Bearing Seats for Stable Vibration
Bearing seats are manufactured using large CNC boring and milling equipment, ensuring perfect concentricity between both ends and high dimensional accuracy of critical components. This results in smooth, stable vibration, reduced wear, and extended operational reliability.
2. Advanced Oil Lubrication System for Extended Bearing Life
Equipped with a specialized lubricating oil system that provides superior cooling and lubrication performance compared to traditional grease methods. This significantly extends bearing service life, reduces maintenance intervals, and lowers long-term operating costs.
3. High-Capacity Feeding with Coarse Screening Function
Designed to handle large feed sizes up to 1200 mm (ZSW1960) while performing preliminary coarse screening of materials. The adjustable slot inclination (0–10°) allows operators to optimize material flow and separation efficiency according to specific process requirements.
4. Durable Construction for Heavy-Duty Applications
Built with a reinforced frame, heavy-duty vibrator assembly, and wear-resistant liners, the ZSW Series withstands continuous operation under high-impact and abrasive material conditions, ensuring long-term durability and minimal downtime.
5. Energy-Efficient Operation with Reliable Performance
Optimized vibration mechanics and efficient motor design deliver high throughput capacities—from 300 t/h to 1400 t/h—with relatively low power consumption, making it a cost-effective solution for high-volume material handling systems.
Applications of the ZSW Series Vibrating Feeder
1. Primary Feeding in Mining & Quarry Crushing Plants
Delivers controlled feed of blasted rock and run-of-mine ore to jaw or gyratory crushers while removing fine material through coarse screening.
2. Aggregate & Sand Processing Lines
Supplies raw material to crushers and screens in sand, gravel, and crushed stone plants, with preliminary removal of undersize material to improve crushing efficiency.
3. Metallurgical & Mineral Processing Feed Systems
Handles various ores and minerals in concentrators, smelters, and processing plants, ensuring steady feed rates to crushers, mills, or sorting equipment.
4. Cement & Building Material Raw Material Handling
Feeds limestone, clay, gypsum, and other raw materials to crushers or prehomogenization stockpiles in cement and building material production.
5. Coal Handling & Preparation Plants
Used for feeding and preliminary screening of raw coal before crushing, washing, or sorting processes in coal mining and power generation facilities.
| Type | Max.Feeding(mm) | Effective Working plane(mm) | Capacity(t/h) | Slot dip(°) | Power(kw) | Overall Dimensions(mm) |
ZSW1260 | 700 | 1200x6000 | 300-600 | 0-10 | 37 | 6000x1850x1760 |
ZSW1560 | 800 | 1500x6000 | 400-800 | 0-10 | 45 | 6000x2212x1820 |
| ZSW1760 | 1000 | 1700x6000 | 600-1000 | 0-10 | 55 | 6000x2412x1820 |
| ZSW1960 | 1200 | 1900x6000 | 800-1400 | 0-10 | 75 | 6000x2612x1820 |
Performance Comparison: ZSW Series vs WL Series Vibrating Feeders
| Feature | ZSW Series Linear Vibrating Feeder | WL Series Vibrating Feeder |
|---|---|---|
| Primary Function | Feeding + coarse screening | Uniform feeding only |
| Max. Feed Size | Up to 1200 mm | Up to 1200 mm (WL1960) |
| Inclination Adjustment | 0–10° adjustable | Typically fixed or limited adjustment |
| Lubrication System | Oil lubrication system | Gear oil lubrication |
| Typical Use | Primary feed with screening | General-purpose feed to crushers/screens |
ZSW vs Apron Feeder Comparison
| Feature | ZSW Vibrating Feeder | Apron Feeder |
|---|---|---|
| Feed Size Handling | Good for lump & granular | Excellent for extra-large, heavy lumps |
| Screening Capability | Yes (coarse screening) | No |
| Maintenance | Lower (fewer moving parts) | Higher (chains, pans, rollers) |
| Energy Consumption | Generally lower | Can be higher due to chain drive |
Why Choose the ZSW Series Vibrating Feeder?
Dual Function: Combines feeding and coarse screening in one unit, improving plant layout and efficiency.
Precision Engineering: CNC-machined components ensure vibration stability and long-term reliability.
Advanced Lubrication: Oil lubrication extends bearing life and reduces maintenance costs.
High Capacity Range: Models available from 300 to 1400 t/h to suit various production scales.
Adjustable & Versatile: Inclination and vibration parameters can be tuned for different materials and process needs.
