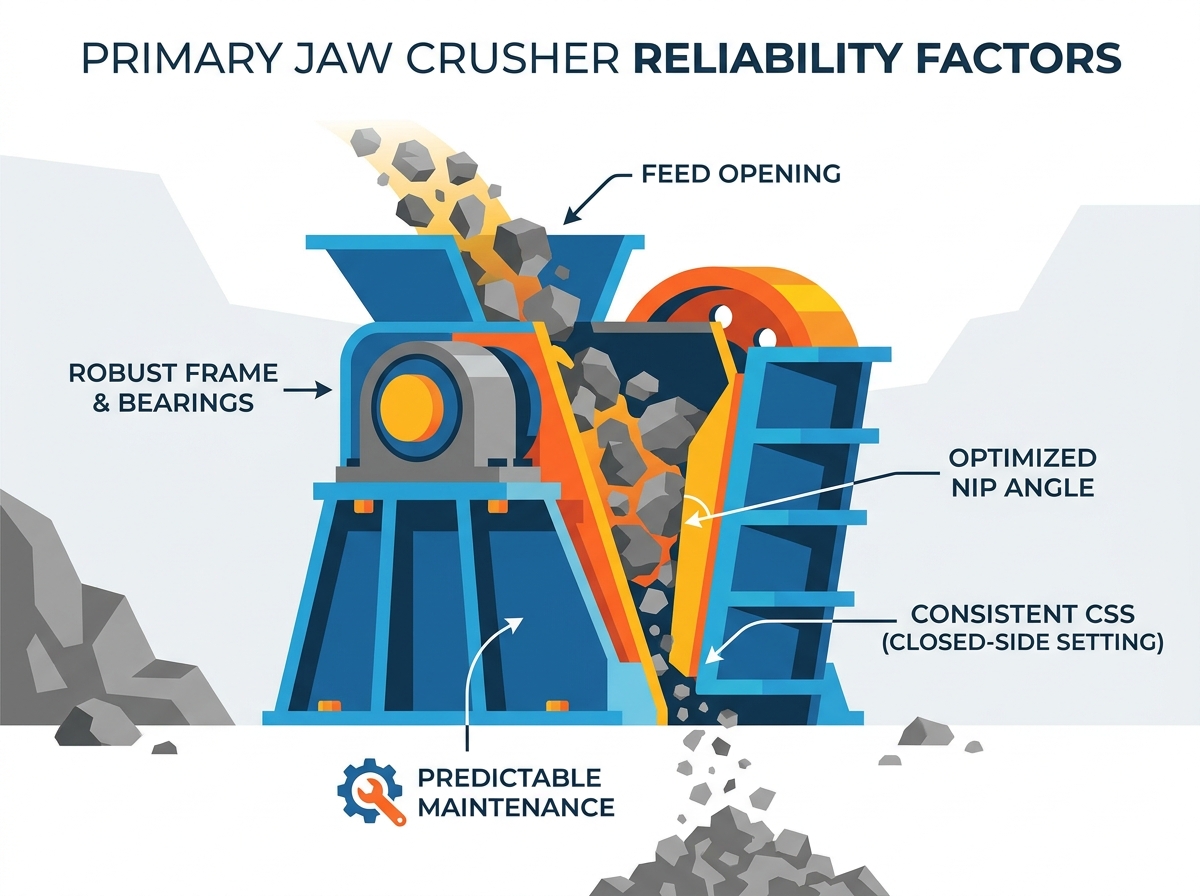

Primary crushers handle immense throughput, often reaching up to 5,000 tons per hour. These heavy-duty giants operate as the central bottleneck of any hard rock mining or quarrying circuit. When a structural component fails, unplanned downtime directly impacts the bottom line. You simply cannot afford unpredictable machine stoppages in high-stakes environments. Understanding a crusher's anatomy helps procurement managers and plant engineers make smarter decisions.
We will provide a detailed breakdown of the machine's core systems, from the foundational base to the intricate drive assemblies. You will learn how to evaluate wear parts and assess material upgrades. Furthermore, we will show you how to implement predictable maintenance schedules based on strict operational parameters. By mastering these internal workings, you protect your heavy investments and ensure continuous peak production.
A gyratory crusher relies on six core systems: the base, main frame/spider, crushing chamber (mantle and concaves), drive assembly, eccentric mechanism, and hydraulic adjustment system.
Material selection for wear parts (e.g., Titanium Carbide inserts vs. standard manganese) can increase component lifespan by 2–3 times.
Modern short-shaft designs and advanced nip angles (up to 30°) offer superior force transfer and reduce choking risks compared to legacy models.
Component health can be diagnosed through strict operational parameters, such as maintaining oil temperatures between 30°C–32°C and keeping no-load head spin below 20 RPM.
The structural integrity of a primary crusher dictates its ultimate reliability. These machines must absorb continuous, high-impact shock loads without suffering frame degradation. A gyratory crusher requires a massive, rigid foundation to survive decades of brutal operation. Every upper component relies entirely on the stability of this foundational frame.
The base acts as the solid foundation for the entire machine. It houses the critical eccentric assembly and provides safe entry points for drive and lubrication systems. Manufacturers often cast the bottom shell in multiple separate segments. Transportation weight limits on highways make moving a single, giant cast-iron block impossible. Engineers assemble these massive steel castings on-site, bolting them securely to form an immovable anchor.
The spider assembly spans the top feed opening of the crusher. Its primary function involves dispersing incoming ore loads evenly across the crushing chamber. Spider arms take direct hits from massive rock boulders falling from haul trucks. Additionally, these hollow arms provide a fully protected channel for critical lubrication lines.
You must carefully evaluate the spider bearing during routine inspections. The spider bushing serves as a critical wear point for the entire machine. Excessive wear here directly impacts the mainshaft alignment. When the mainshaft drifts out of precise alignment, the machine suffers uneven wear across all internal crushing surfaces.
The mainshaft suspends directly from the heavy spider assembly above. It supports the moving crushing surface, commonly known as the mantle. The mainshaft endures extreme bending forces during the crushing cycle. It also includes a heavy-duty step washer at the upper pivot point. This washer allows for micro-adjustments in position, ensuring the mantle remains perfectly aligned inside the chamber.
The crushing chamber represents the highest operating expense area of the machine. Selecting the right alloy and profile dictates the overall operating expenses and crushing efficiency. You must match the metallurgical properties of these parts to the exact abrasion index of your specific ore.
The mantle serves as the inner moving wall of the crusher. It pivotally mounts at the top, while the eccentric sleeve drives the bottom. This mechanical layout creates an oscillating, elliptical crushing stroke. As the mantle swings closer to the outer wall, it crushes the rock. As it swings away, the crushed rock drops lower into the chamber.
Material evaluation remains critical for maximizing up-time. Historically, standard high-manganese steel served as the default choice. Today, modern Titanium Carbide (TIC) inserts or hybrid mantles offer superior performance. TIC inserts can extend the component lifecycle by two to three times. Furthermore, longer-lasting mantles drastically reduce the frequency of hazardous epoxy backing replacements.
Concave segments form the stationary outer wall of the crushing chamber. The physical gap between the mantle and these concaves decreases gradually from top to bottom. Industry professionals refer to the top opening as the gape. You must evaluate concave materials carefully to prevent rapid degradation.
Plant engineers recommend a tiered selection approach for concaves. You might install XT510 or XT710 manganese alloys in the upper zones where impact forces dominate. For the lower zones, high-chrome alloys provide better resistance against severe abrasive grinding. Additionally, some manufacturers offer toothed concave solutions. These toothed profiles prevent material slippage and significantly improve throughput for smooth or slippery rock types.
Legacy machines often suffered from material blockages in the lower chamber. Modern chamber design evolution introduced non-choking profiles. These advanced profiles feature optimized nip angles reaching up to 30 degrees. The steeper nip angle provides a much better grip on incoming feed material. This specific geometry yields a more consistent product shape while simultaneously drawing less power from the main motor.
Use the following summary chart to evaluate material upgrades for your crushing chamber:
Wear Part Component | Standard Material | Recommended Upgrade | Expected Lifespan Benefit |
|---|---|---|---|
Mantle (Primary Cone) | Standard Manganese (Mn14) | Titanium Carbide (TIC) Inserts | 2x to 3x longer life |
Upper Concaves | Low-Grade Alloy Steel | XT510/XT710 Manganese | Excellent high-impact resistance |
Lower Concaves | Standard Manganese | High-Chrome Alloys | Superior abrasion resistance |
Understanding the internal drivetrain remains essential for troubleshooting throughput drops. The power transmission system handles massive torque. Operators must fully understand how motor load translates into actual crushing force to prevent sudden mechanical failures.
Motor power travels through a highly engineered sequence of components. If any single part in this chain fails, the entire crusher stops immediately. The exact sequence of power transfer follows this specific path:
Electric Motor: Provides the initial high-torque rotational energy.
Drive Shaft: Transfers power horizontally into the bottom shell.
Stable Bearing: Keeps the shaft perfectly aligned under heavy load.
Pinion Gear: A small, high-speed gear mounted on the drive shaft.
Crown (Bevel) Gear: A massive gear driven by the pinion, changing rotation from horizontal to vertical.
Eccentric Bushing: Receives power from the bevel gear to generate the final crushing stroke.
The eccentric mechanism takes rotational energy and converts it into a variable stroke. The internal bore of the eccentric bushing sits slightly off-center. When the bevel gear turns this bushing, it forces the bottom of the mainshaft to swing in a wide circle. The clever design ensures the top of the mainshaft barely moves inside the spider bearing. Meanwhile, the bottom of the shaft generates the maximum crushing stroke required to break hard rock.
Legacy crushers frequently utilized long-shaft designs. Modern manufacturers now strongly prefer short-shaft configurations. In a short-shaft machine, engineers position the eccentric mechanism securely above the bevel gear. This modern layout offers a more direct conversion of eccentric motion into crushing force. It minimizes destructive shaft bending and allows for incredibly precise control over the crushing stroke.
You must keep the machine running at optimal speeds. Primary crusher speeds generally operate strictly between 100 and 200 RPM. Operators control this rotational speed by altering the ratio of the motor sheaves to the crusher sheaves. Running below 100 RPM reduces throughput, while exceeding 200 RPM invites catastrophic bearing failure and excessive heat generation.
Modern machines rely on intelligent control systems to prevent catastrophic failure. A gyratory crusher faces constant threats from uncrushable tramp iron or sudden overload conditions. Effective risk mitigation keeps these expensive assets safe from operator errors or rogue materials.
The Hydroset system represents one of the most vital upgrades in modern crushing technology. This hydraulic assembly sits at the very bottom of the machine.
On-the-Fly Adjustments: The Hydroset system allows operators to raise or lower the entire mainshaft via a massive hydraulic cylinder. This changes the Closed Side Setting (CSS) instantly without stopping production.
Wear Compensation: As the mantle and concaves wear down, operators simply pump more hydraulic fluid into the cylinder. The shaft rises, closing the gap and maintaining consistent product sizing.
Overload Protection: Sometimes, uncrushable materials like broken excavator teeth enter the chamber. The Hydroset detects this massive pressure spike. It automatically lowers the mainshaft to let the tramp metal pass safely. Once cleared, it returns the shaft to its original setting.
You cannot ignore the lubrication system. Poor lubrication causes rapid overheating and catastrophic bearing failure. Crusher start-up procedures must strictly follow rigid temperature protocols.
Success criteria demand pre-heating the lubrication oil before starting the main motor. You must heat the oil to a precise window between 30°C and 32°C. Cold oil remains too thick to penetrate the tight clearances of the eccentric bushing. Furthermore, operators must never introduce rock feed immediately. Feed begins only when the returning oil temperature registers above 18°C. This ensures the entire machine has reached a safe, stabilized thermal operating range.
You must transition your team from reactive repairs to predictive maintenance logic. Waiting for a part to break destroys your annual production targets. Implementing actionable next steps will safeguard your machinery and maximize your financial returns.
Operators should continually monitor the "no-load head spin" during empty running periods. When the chamber sits empty, friction between the eccentric bushing and the mainshaft causes the mantle to slowly rotate. If the mantle spins at more than 20 RPM while empty, you have a severe problem. High no-load head spin serves as the primary indicator of severe spider bushing wear or internal lubrication failure.
Strict maintenance intervals prevent minor issues from becoming major rebuilds. Follow this structured timeline to keep equipment running smoothly:
Daily: Check all hydraulic and lubrication oil levels. Monitor the machine for unusual vibration anomalies or metallic knocking sounds.
100-Hour: Thoroughly lubricate all external moving parts. Inject fresh grease into the upper spider bearings.
200-Hour: Conduct a comprehensive wear part thickness inspection. Measure the remaining mantle and concave profiles using OEM gauges.
Yearly: Perform a full system oil change. Execute a heavy mechanical audit, testing the integrity of the drive shaft, gears, and bottom shell structural bolts.
Replacing a mantle requires rigorous Standard Operating Procedures (SOPs). You cannot rush this dangerous process. Maintenance crews must perform proper cleaning of the mainshaft before seating the new mantle. They must apply specific silicone release agents to the mating surfaces. This prevents the parts from fusing together during operation.
Crews rely on exact wood-wedge centering to ensure the new mantle sits perfectly straight. Finally, they execute precise epoxy backing pouring. The epoxy fills the tiny voids between the mantle and the shaft. If poured incorrectly, or if poured too cold, the epoxy will crack under pressure, causing the mantle to rattle and eventually destroy the mainshaft.
A machine's reliability depends entirely on the synergistic health of its structural frame, drive train, and chamber wear parts. You cannot neglect one system without severely impacting the others. Understanding how power flows from the pinion gear to the eccentric bushing allows you to diagnose problems faster and plan smarter maintenance interventions.
When evaluating replacement parts, use strict shortlisting logic. Always prioritize components matching your specific ore hardness and throughput goals. For highly abrasive rock, invest upfront in TIC mantles. For slippery or smooth feed materials, specify toothed concaves to maintain consistent throughput and prevent material bridging.
Your immediate next action requires an audit of your current wear part lifecycles. Compare your real-time operating parameters, like RPM and oil temperature, against baseline OEM recommendations. By finding and fixing these small operational gaps today, you will identify immediate optimization opportunities and extend the life of your crushing equipment.
A: Size is designated by two numbers, for example, 60-89. The first number represents the gape, which is the feed opening width in inches. The second number represents the mantle diameter at the base. This standardized naming convention helps engineers match the machine to their hauling equipment.
A: To prevent dangerous bridging and material blockages, you must control the feed size. The maximum feed size should strictly not exceed 80% to 85% of the crusher's rated feed opening (gape). Pushing boulders larger than this limit invites severe blockages and downtime.
A: A non-choking design prevents rock from packing tightly at the bottom of the chamber. It allows for increased capacity at much smaller discharge settings. It also ensures more even wear across both the concave and mantle, ultimately reducing the power draw per ton of crushed rock.
A: If the mainshaft spins excessively without material in the chamber, typically over 20 RPM, it flags a major mechanical issue. It usually indicates excessive friction or an impending failure within the spider bearing or eccentric bushing assembly. This condition requires immediate inspection to prevent total failure.
