Views: 0 Author: Site Editor Publish Time: 2026-03-16 Origin: Site
Have you ever wondered how the size of raw materials affects crusher efficiency? In the world of mining and construction, jaw crushers play a crucial role in processing materials. Understanding the maximum feed size of these machines is essential for optimizing their performance.
In this article, we’ll explore what maximum feed size means and why it matters. You’ll also learn about the specifications of various jaw crushers, including those from Guangdong Chuangli Intelligent Machinery Co., Ltd., a leader in the industry. Let’s dive in!
A jaw crusher is a powerful machine designed to crush large rocks and materials into smaller, manageable pieces. Its primary function is to break down hard materials, making it essential in mining, construction, and recycling industries. The design of a jaw crusher allows it to handle a variety of materials, from granite to concrete.

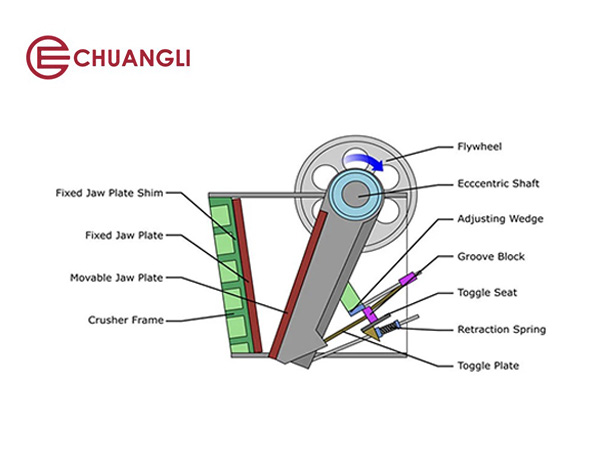

Key Components:
● Jaw Dies: These are the plates that crush the material. They come in different shapes and sizes to accommodate various materials.
● Crushing Chamber: This is where the material is crushed. The size and shape of the chamber affect the efficiency of the crushing process.
● Toggle Plate: This component helps to maintain the gap between the jaw dies, ensuring consistent crushing.
There are several types of jaw crushers available, each designed for specific applications. Understanding these types can help you choose the right one for your needs.
1. CJ Series:
● Known for high capacity and efficiency.
● Ideal for heavy-duty applications in mining and aggregate industries.
● Features advanced technology for better performance and lower energy consumption.
2. PE Series:
● Offers a range of models suitable for different crushing capacities.
● Commonly used for primary crushing in various industries.
● PE900 is particularly effective for hard rock crushing.
Model | Maximum Feed Size (mm) | Rated Output Capacity (t/h) | Application |
PE900 | 500 | 80 - 180 | Hard rock crushing |
PE1200 | 750 | 350 - 600 | Large-scale crushing lines |
CJ125 | 760 | 270 - 831 | Smart high-capacity crushing |
Applications of Jaw Crushers:
● Mining: Efficiently crushes ores and minerals for extraction.
● Construction: Breaks down concrete and bricks for recycling.
● Quarrying: Processes stone aggregates for various construction projects.
Chuangli's Models: Guangdong Chuangli Intelligent Machinery Co., Ltd. offers a range of jaw crushers that cater to diverse industry needs. Their models are equipped with innovative features that enhance performance and reliability. By focusing on quality and efficiency, Chuangli ensures that their jaw crushers meet the demands of both small and large-scale operations.
Choosing the right jaw crusher depends on understanding your specific requirements. Whether you need a high-capacity model for mining or a more versatile option for construction, there’s a Chuangli jaw crusher designed to meet those needs.
Maximum feed size refers to the largest size of material that a jaw crusher can effectively process. It's a critical specification that affects various aspects of the crushing operation. Understanding this concept helps in optimizing the performance of your equipment.
● Significance in the Crushing Process:
○ Determines how much material can enter the crushing chamber at once.
○ Affects the overall efficiency and output of the jaw crusher.
○ Ensures materials are crushed effectively without causing damage to the machine.
Choosing the right maximum feed size is essential for achieving optimal results. If the feed size exceeds the recommended limits, it can lead to blockages, increased wear on components, and even downtime.
The maximum feed size has a direct impact on both crushing efficiency and output. It plays a vital role in ensuring that the jaw crusher operates smoothly and effectively.
● Impact on Crushing Efficiency:
○ Larger feed sizes can reduce the crushing efficiency, as the crusher may struggle to break down oversized materials.
○ Optimal feed size enhances the reduction ratio, which is the ratio of the size of the input material to the size of the output material.
● Relationship with Reduction Ratio:
○ A lower maximum feed size often leads to a higher reduction ratio, meaning smaller output particles.
○ This relationship is crucial for applications where specific particle sizes are required, such as in concrete or asphalt recycling.
Factor | Effect on Performance |
Maximum Feed Size | Determines the size of material entering the crusher |
Crushing Efficiency | Higher efficiency with optimal feed size |
Reduction Ratio | Lower feed size generally results in a higher reduction ratio |
For example, if you're using a jaw crusher with a maximum feed size of 500 mm, feeding larger rocks can lead to inefficiencies. The machine may not crush them properly, resulting in larger chunks that require additional processing.
Additionally, understanding the material being processed is crucial. Different materials have varying characteristics that can affect how they respond to crushing. For instance, softer materials may be more forgiving of larger feed sizes, while harder materials require stricter adherence to the maximum feed size.
Guangdong Chuangli Intelligent Machinery Co., Ltd. designs jaw crushers that accommodate various feed sizes, ensuring they meet the specific needs of different industries. By selecting the right crusher and understanding maximum feed size, you can significantly enhance your operation's efficiency and productivity.
When selecting a jaw crusher, understanding the maximum feed sizes for different models is crucial. Here’s a look at some common models offered by Guangdong Chuangli Intelligent Machinery Co., Ltd. and their specifications.
Model | Maximum Feed Size (mm) | Recommended Output Capacity (t/h) | Application |
PE900 | 500 | 80 - 180 | Suitable for hard materials |
PE1200 | 750 | 350 - 600 | Ideal for large-scale operations |
CJ125 | 760 | 270 - 831 | High-capacity crushing |
These specifications help you determine which model fits your operational needs best. For instance, if you’re dealing with larger rocks, the PE1200 might be the right choice.
Several factors affect the maximum feed size that a jaw crusher can handle effectively. Understanding these can help you optimize your crushing operations.
● Design of the Crushing Chamber:
○ The shape and size of the crushing chamber play a significant role in determining maximum feed size. A well-designed chamber allows for better material flow and reduces the chances of blockages.
○ Chuangli’s innovative chamber design maximizes the crushing efficiency while accommodating larger feed sizes.
● Material Characteristics:
○ Different materials have varying hardness and brittleness. Softer materials may allow for larger feed sizes, while harder materials require strict adherence to the maximum limits.
○ For example, granite may need a smaller feed size compared to limestone due to its hardness.
● Particle Size Distribution:
○ The uniformity of the material’s particle size also influences how it interacts within the jaw crusher. A consistent particle size can lead to more efficient crushing.
○ If the material has a wide range of sizes, it might cause inefficiencies, making it essential to pre-screen materials before feeding them into the crusher.
Chuangli's design innovations enhance adaptability to various feed sizes. By focusing on these factors, they ensure their jaw crushers can handle diverse materials effectively, improving overall productivity.
Choosing the right model and understanding these specifications can significantly impact your operation’s efficiency. By keeping these factors in mind, you can ensure that your jaw crusher performs at its best, reducing downtime and maximizing output.
The 80% rule is a practical guideline for determining the maximum feed size for a jaw crusher. According to this rule, you should aim to feed materials that are no larger than 80% of the crusher's maximum feed size specification. This helps ensure optimal performance and reduces the risk of operational issues.
Why It Matters:
● Efficiency: Feeding material within this limit allows the jaw crusher to operate at peak efficiency, minimizing energy consumption.
● Reduced Wear: Keeping the feed size within 80% helps prevent excessive wear on the jaw dies and other components.
● Minimized Downtime: By adhering to this rule, you can avoid blockages and downtime caused by oversized materials.
For example, if you have a jaw crusher with a maximum feed size of 600 mm, the ideal feed size should not exceed 480 mm. This practice can significantly enhance the lifespan of your equipment while maintaining consistent output.
The 90% rule comes into play in specific scenarios, particularly when dealing with materials that vary in size or when the crushing operation requires flexibility. This rule suggests that, under certain conditions, you can feed materials up to 90% of the maximum feed size.
When to Apply the 90% Rule:
● Material Characteristics: If the material is softer or more brittle, it may be acceptable to push the limits slightly. Softer materials often break down more easily, allowing for larger feed sizes.
● Operational Flexibility: In situations where production demands are high, and you need to maximize throughput, this rule can be beneficial.
Examples from Chuangli's Product Line:
● For the PE1200 model, the maximum feed size is 750 mm. In a scenario where softer limestone is being processed, you might consider feeding up to 675 mm (90% of the maximum). This approach can boost productivity without compromising the quality of the output.
● Conversely, when dealing with harder materials like granite, sticking closer to the 80% rule is advisable to avoid wear and tear.
Rule | Recommended Feed Size (% of Max) | Suitable Materials | Application Scenario |
80% Rule | 80% | Hard materials | Standard operations |
90% Rule | 90% | Softer materials | High-demand production |
By understanding and applying these guidelines, you can optimize the performance of your jaw crusher. Whether you stick to the 80% rule for standard operations or flexibly apply the 90% rule for softer materials, these strategies will help you achieve better results. Chuangli's jaw crushers are designed to accommodate these practices, ensuring that you get the most out of your equipment.
Feeding oversized materials into a jaw crusher can lead to several significant challenges. Understanding these issues can help you avoid costly downtime and enhance operational efficiency.
● Blockages and Downtime:
○ Oversized materials can easily cause blockages in the crushing chamber. When this happens, the machine may halt operations, leading to unplanned downtime.
○ Clearing blockages not only wastes time but can also require additional labor and resources, impacting overall productivity.
● Increased Wear and Tear on Components:
○ When larger rocks enter the crusher, they can place excessive stress on the jaw dies and other components. This results in accelerated wear and the need for more frequent maintenance.
○ Over time, this can lead to costly repairs and replacements, affecting the lifespan of your equipment.
Addressing these challenges is vital for maintaining the efficiency and reliability of your jaw crusher operations.
Implementing effective strategies to manage feed size can significantly reduce the issues associated with oversized materials. Here are some practical solutions:
● Pre-Screening and Material Preparation:
○ Pre-screening involves sorting materials before they enter the jaw crusher. By removing larger particles, you can ensure that only appropriately sized material is processed.
○ This can be achieved through vibrating screens or other separation technologies, allowing for a smoother crushing process.
● Use of Feeder Systems and Technology:
○ Advanced feeder systems can help regulate the flow of material into the jaw crusher. These systems can be equipped with sensors to monitor feed size and adjust accordingly.
○ Chuangli offers innovative feeder solutions designed to optimize the feeding process. Their technology can automatically adjust the feed rate based on real-time data, reducing the risk of blockages.
Solution | Description | Benefits |
Pre-Screening | Sorting materials before crushing | Reduces oversized feed entering crusher |
Advanced Feeder Systems | Regulates material flow and adjusts based on size | Minimizes blockages and wear |
By implementing these solutions, you can effectively manage the maximum feed size and enhance the performance of your jaw crusher. Adopting these practices not only improves efficiency but also extends the lifespan of your equipment, ensuring smoother operations in the long run.
Understanding the maximum feed size in jaw crushers is crucial for efficient operations. It impacts crushing efficiency, wear, and downtime.
Optimizing feed size can enhance performance and reduce costs. Chuangli offers innovative solutions to manage feed size effectively. Their technology helps ensure your jaw crusher operates smoothly and efficiently.
A: Exceeding the maximum feed size can cause blockages, increased wear on components, and unplanned downtime.
A: The maximum feed size is typically specified in the manufacturer's documentation or can be measured using calipers on the feed opening.
A: Yes, softer materials allow for larger feed sizes, while harder materials require stricter adherence to maximum limits.
A: Adjustments can be made using pre-screening, feeder systems, or by regulating the material flow.
A: Chuangli's jaw crushers feature innovative designs and advanced feeder systems that optimize feed size and enhance operational efficiency.
